SM2084
ActiveFairview Microwave
ADAPT JACK-PLUG SSMB 1.3 VSWR
SM2084
ActiveFairview Microwave
ADAPT JACK-PLUG SSMB 1.3 VSWR
Description
General part information
SM2084

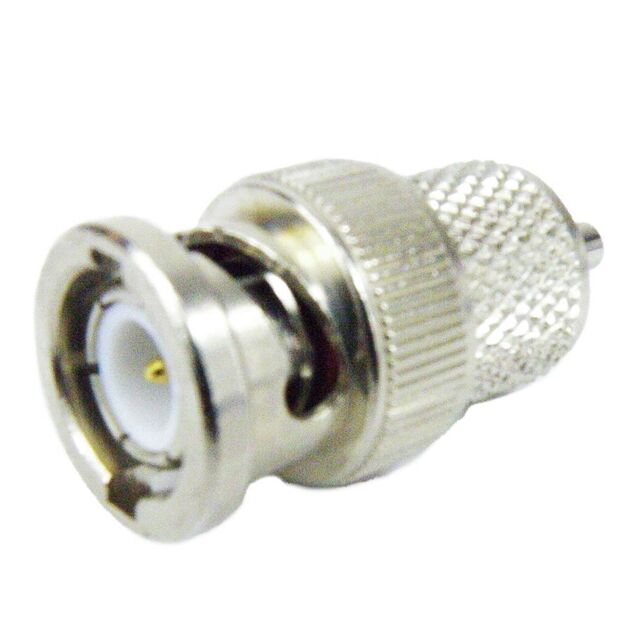

Adapter Coaxial Connector SSMB Jack, Female Socket To BNC Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM2084 |
|---|---|
| Adapter Series | BNC to SSMB |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SSMB Jack, Female Socket |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | BNC Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock, Snap-On |
| Frequency - Max | 4 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -55 °C |
| Style | Straight |
