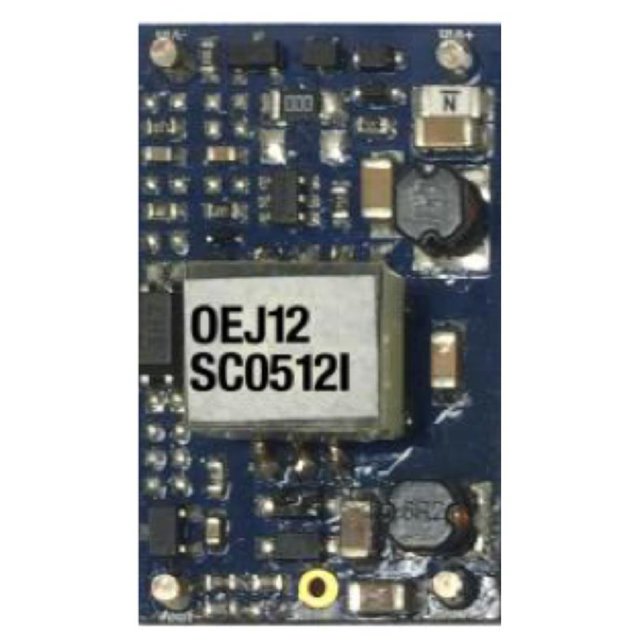

OEJ12SC0512I

Active

ETA-USA

DC DC CONVERTER 12V 1.56W

Search across all available documentation for this part.

Active

ETA-USA

DC DC CONVERTER 12V 1.56W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 12V 1.56W

Part	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Isolation	Voltage - Output 1	Type	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Applications	Current - Output (Max) [Max]	Power (Watts)	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Number of Outputs
ETA-USA OEJ12SC0512I	4.5 V	16 V	1.5 kV	12 V	Isolated Module	71 °C	-20 C	83 %	ITE (Commercial)	130 mA	1.56 W	Through Hole	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	4-DIP Module	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 130mA 4.5V - 16V Input

Technical documentation and resources

No documents available
