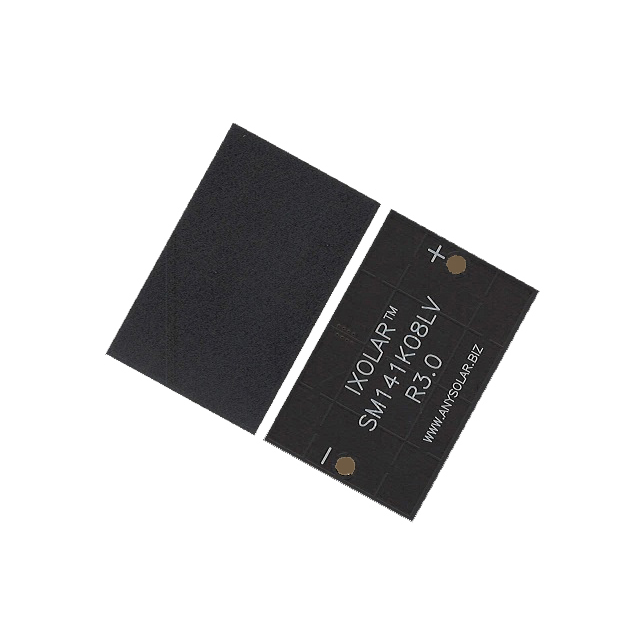

SM141K08LV

Active

ANYSOLAR Ltd

MONOCRYST SOLAR CELL 246MW 5.53V

Search across all available documentation for this part.

Active

ANYSOLAR Ltd

MONOCRYST SOLAR CELL 246MW 5.53V

Technical Specifications

Parameters and characteristics for this part

MONOCRYST SOLAR CELL 246MW 5.53V

Part	Power (Watts) - Max [Max]	Voltage @ Pmpp [custom]	Voltage - Open Circuit	Current - Short Circuit (Isc)	Current @ Pmpp	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type
ANYSOLAR Ltd SM141K08LV	246 mW	4.46 V	5.53 V	58.6 mA	55.1 mA	29 mm	45 mm	1.142 in	2.1 mm	1.772 in	0.083 in	90 °C	-40 °C	Cells	Monocrystalline

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Monocrystalline Solar Cell 246 mW 5.53 V

Technical documentation and resources

No documents available
