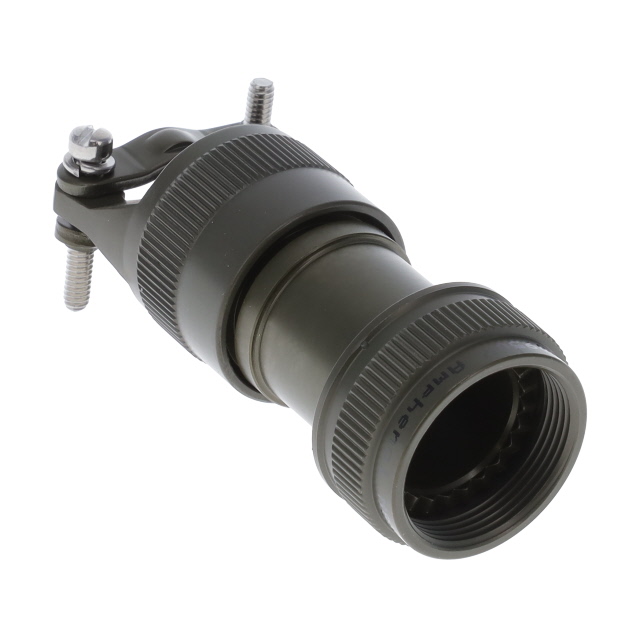

M85049/1915W04

Active

Amphenol Interconnect India

CONN BACKSHLL W/CLMP SZ15 D OLIV

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M85049/1915W04	M85049/19 Series

Cable Exit	180 °	180 °
Cable Opening	-	0.06 - 0.94 in
Cable Opening	-	3.3 - 28.7 mm
Cable Opening	-	0.13 - 1.13 in
Cable Opening	-	1.52 - 23.88 mm
Cable Opening	-	11.18 - 25.4 mm
Cable Opening	-	0.44 - 1 in
Cable Opening	-	0.13 - 1.25 in
Cable Opening	-	3.3 - 31.75 mm
Cable Opening	-	3.3 - 16 mm
Cable Opening	-	3.3 mm
Cable Opening	-	0.25 in
Cable Opening	-	0.13 in
Cable Opening	-	6.35 mm
Cable Opening [Max] [custom]	0.5 in	0.13 - 0.75 in
Cable Opening [Max] [custom]	12.7 mm	12.7 - 19.05 mm
Cable Opening [Min] [custom]	0.312 in	0.06 - 0.56 in
Cable Opening [Min] [custom]	7.92 mm	1.52 - 14.22 mm
Color	Olive Drab	Black, Olive Drab, Silver
Diameter - Outside [diameter]	1.1 "	0.75 - 1.75 in
Diameter - Outside [diameter]	27.94 mm	19.05 - 44.45 mm
Features	Clamp Screws	Clamp Screws
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV
Material	Aluminum Alloy	Aluminum Alloy
Plating	Cadmium	Zinc Cobalt, Cadmium, Electroless Nickel
Shell Size - Insert	15	11 - 25
Shell Size - Insert	D	G, J, D, F, H, C, B, 17, E
Shell Size - Insert	-	9
Shell Size - Insert	-	A
Shielding	Shielded	Shielded
Type	Backshell, Cable Clamp	Backshell, Cable Clamp

M85049/19 Series

CONN BACKSHELL W/CLMP SZ21 G BLK

...

Part	Color	For Use With/Related Products	Shell Size - Insert	Shell Size - Insert	Type	Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Features	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Plating	Cable Exit	Shielding	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [custom]
Amphenol Interconnect India M85049/1921Z07	Black	MIL-DTL-38999 Series III, IV	21	G	Backshell, Cable Clamp	Aluminum Alloy	0.69 in	22.35 mm	0.88 in	17.53 mm	Clamp Screws	38.1 mm	1.5 in	Zinc Cobalt	180 °	Shielded
Amphenol Interconnect India M85049/1925Z07B	Black	MIL-DTL-38999 Series III, IV	25	J	Backshell, Cable Clamp	Aluminum Alloy	0.69 in	22.35 mm	0.88 in	17.53 mm	Clamp Screws	44.45 mm	1.75 in	Zinc Cobalt	180 °	Shielded
Amphenol Interconnect India M85049/1921Z05B	Black	MIL-DTL-38999 Series III, IV	21	G	Backshell, Cable Clamp	Aluminum Alloy					Clamp Screws	38.1 mm	1.5 in	Zinc Cobalt	180 °	Shielded	11.18 mm, 16 mm	0.44 in, 0.63 in
Amphenol Interconnect India M85049/1925Z08C	Black	MIL-DTL-38999 Series III, IV	25	J	Backshell, Cable Clamp	Aluminum Alloy					Clamp Screws	44.45 mm	1.75 in	Zinc Cobalt	180 °	Shielded	20.57 mm, 25.4 mm	0.81 in, 1 in
Amphenol Interconnect India M85049/1925Z05B	Black	MIL-DTL-38999 Series III, IV	25	J	Backshell, Cable Clamp	Aluminum Alloy					Clamp Screws	44.45 mm	1.75 in	Zinc Cobalt	180 °	Shielded	11.18 mm, 16 mm	0.44 in, 0.63 in
Amphenol Interconnect India M85049/1915Z02A	Black	MIL-DTL-38999 Series III, IV	15	D	Backshell, Cable Clamp	Aluminum Alloy					Clamp Screws	27.94 mm	1.1 "	Zinc Cobalt	180 °	Shielded			0.13 in, 0.25 in	3.3 mm, 6.35 mm
Amphenol Interconnect India M85049/1919Z07A	Black	MIL-DTL-38999 Series III, IV	19	F	Backshell, Cable Clamp	Aluminum Alloy	0.69 in	22.35 mm	0.88 in	17.53 mm	Clamp Screws	35.56 mm	1.4 in	Zinc Cobalt	180 °	Shielded
Amphenol Interconnect India M85049/1925Z09B	Black	MIL-DTL-38999 Series III, IV	25	J	Backshell, Cable Clamp	Aluminum Alloy	0.94 in	28.7 mm	1.13 in	23.88 mm	Clamp Screws	44.45 mm	1.75 in	Zinc Cobalt	180 °	Shielded
Amphenol Interconnect India M85049/1921Z08C	Black	MIL-DTL-38999 Series III, IV	21	G	Backshell, Cable Clamp	Aluminum Alloy					Clamp Screws	38.1 mm	1.5 in	Zinc Cobalt	180 °	Shielded	20.57 mm, 25.4 mm	0.81 in, 1 in
Amphenol Interconnect India M85049/1925Z10	Black	MIL-DTL-38999 Series III, IV	25	J	Backshell, Cable Clamp	Aluminum Alloy					Clamp Screws	44.45 mm	1.75 in	Zinc Cobalt	180 °	Shielded			1.06 in, 1.25 in	26.92 mm, 31.75 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 69.58
		10	$ 54.00
		25	$ 49.06
		50	$ 45.73
		100	$ 42.72
		250	$ 39.17

Description

General part information

M85049/19 Series

Olive Drab Connector Backshell, Cable Clamp 15, D
