B5MBAUH
ActiveSwitchcraft Inc.

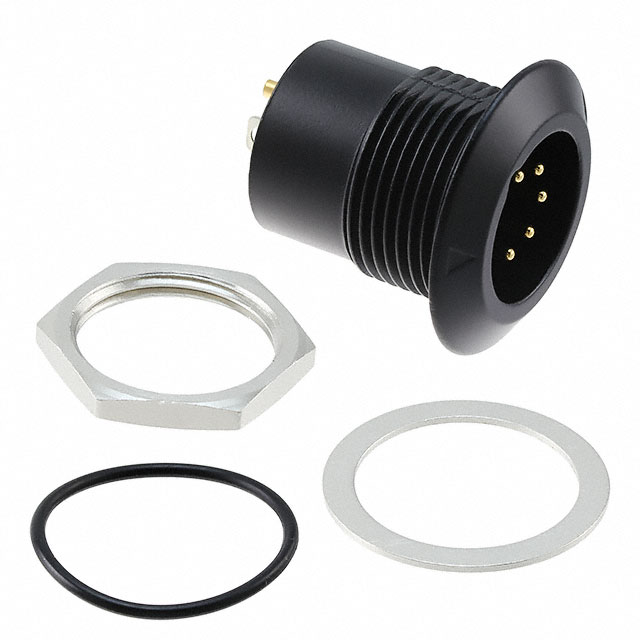

CONN RCPT MALE XLR 5P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B5MBAUH
ActiveSwitchcraft Inc.
CONN RCPT MALE XLR 5P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | B5MBAUH | B5M Series |
|---|---|---|
| Applications | Audio, Instrumentation | Audio, Instrumentation |
| Color | Black | Silver, Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Silver, Gold |
| Contact Material | Brass | Brass |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Ground | Ground |
| Ingress Protection | IP66 | IP66 |
| Insert Material | Polyester | Polyester |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Black | Nickel, Black |
| Shell Material | Zinc | Zinc |
| Shell Size - Insert | XLR | XLR |
B5M Series
CONN RCPT MALE XLR 5P SOLDER CUP
| Part | Shell Material | Fastening Type | Ingress Protection | Contact Finish - Mating | Shell Finish | Connector Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Primary Material | Orientation | Applications | Contact Material | Insert Material | Color | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. B5MH | Zinc | Latch Lock | IP66 | Silver | Nickel | Male Pins, Receptacle | Ground | 65 °C | -40 °C | Bulkhead - Rear Side Nut | Metal | Keyed | Audio, Instrumentation | Brass | Polyester | Silver | XLR |
Switchcraft Inc. B5MBH | Zinc | Latch Lock | IP66 | Silver | Black | Male Pins, Receptacle | Ground | 65 °C | -40 °C | Bulkhead - Rear Side Nut | Metal | Keyed | Audio, Instrumentation | Brass | Polyester | Black | XLR |
Switchcraft Inc. B5MBAUH | Zinc | Latch Lock | IP66 | Gold | Black | Male Pins, Receptacle | Ground | 65 °C | -40 °C | Bulkhead - Rear Side Nut | Metal | Keyed | Audio, Instrumentation | Brass | Polyester | Black | XLR |
Switchcraft Inc. B5MAUH | Zinc | Latch Lock | IP66 | Gold | Nickel | Male Pins, Receptacle | Ground | 65 °C | -40 °C | Bulkhead - Rear Side Nut | Metal | Keyed | Audio, Instrumentation | Brass | Polyester | Silver | XLR |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 15.35 | |
Description
General part information
B5M Series
5 Position Circular Connector Receptacle, Male Pins Solder Cup
