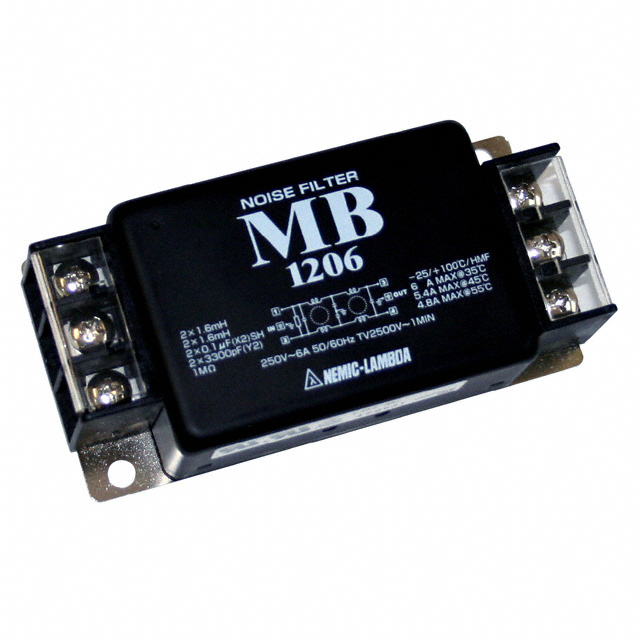

MB1206
ObsoleteTDK Corporation
LINE FILTER 250VDC/VAC 6A CHAS
MB1206
ObsoleteTDK Corporation
LINE FILTER 250VDC/VAC 6A CHAS
Description
General part information
MB1206
Single Phase EMC/EMI Line Filter 6 A 250V 250V Two Stage Terminal Block
Technical Specifications
Parameters and characteristics for this part
| Specification | MB1206 |
|---|---|
| Applications | General Purpose |
| Approval Agency | VDE, CSA, UL |
| Configuration | Two Stage |
| Current | 6 A |
| Filter Type | Single Phase |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC | 250 V |
| Voltage - Rated DC | 250 V |
