TS2C2F20C

Active

Switchcraft Inc.

CONN PLUG FMALE 2POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE 2POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	TS2C2F20C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Backshell Material, Plating	Copper Alloy, Nickel
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

CONN PLUG FMALE 2POS GOLD CRIMP

Part	Shell Material	Features	Shell Finish	Number of Positions	Contact Material	Backshell Material, Plating	Termination	Primary Material	Voltage Rating	Insert Material	Mounting Type	Orientation	Contact Finish - Mating	Ingress Protection	Applications	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Connector Type	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Color
Switchcraft Inc. TS2C2F20C	Copper Alloy	Backshell, Coupling Nut	Electroless Nickel	2	Copper Alloy	Copper Alloy, Nickel	Crimp, Solder Cup	Metal	125 VAC	Liquid Crystal Polymer (LCP)	Free Hanging (In-Line)	Keyed	Gold	IP66, IP67, IP68	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	5.49 mm	4.57 mm	0.18 in	0.216 in	Female Sockets, Plug	Shielded	135 °C	-40 °C	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

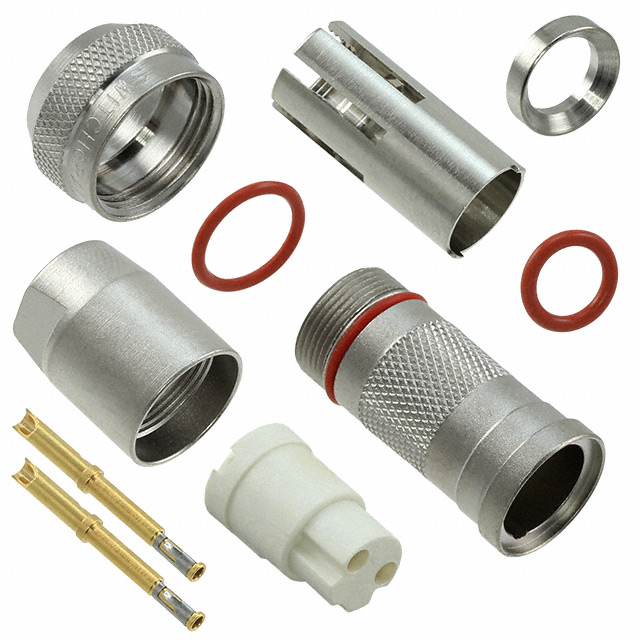

2 Position Circular Connector Plug, Female Sockets Crimp or Solder Cup
