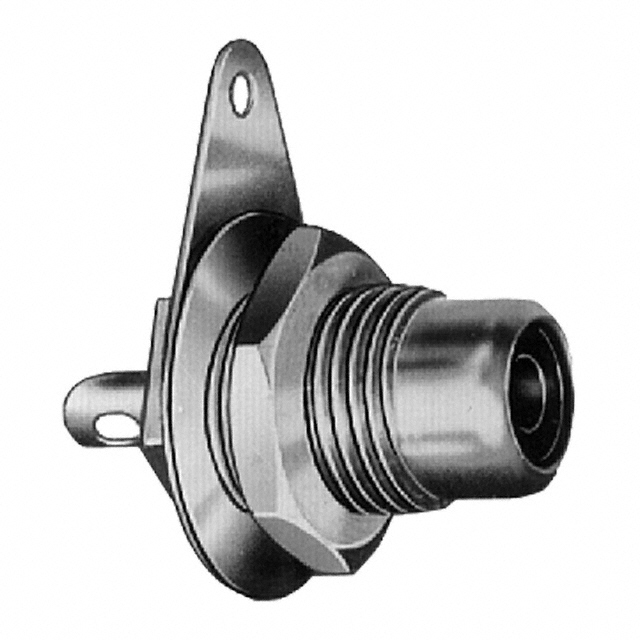

3501FR
ObsoleteSWITCHCRAFT/CONXALL
CONN RCA JACK MONO 3.2MM PNL MT
3501FR
ObsoleteSWITCHCRAFT/CONXALL
CONN RCA JACK MONO 3.2MM PNL MT
Description
General part information
3501FR
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder Eyelet(s)
Technical Specifications
Parameters and characteristics for this part
| Specification | 3501FR |
|---|---|
| Body Color | Silver |
| Body Material | Brass |
| Connector Type | Phono (RCA) Jack |
| Contact Material | Brass |
| Contact Material - Plating | Nickel |
| Features | Mounting Hardware, Grounding Tab |
| Gender | Female |
| Includes | Washer, Connector, Nut |
| Includes Total Count | 3 pcs |
| Industry Recognized Mating Diameter (ID) | 3.2 mm |
| Industry Recognized Mating Diameter (OD) | 9 mm |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Panel Mount |
| Number of Conductors | 2 Conductors |
| Number of Contacts | 2 Contacts |
| Panel Hole Size | 0.375 in |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder Eyelet(s) |
| Thread Pitch (TPI) | 32 TPI |
| Thread Size (Nominal) | 0.375 in |
