175057-2

Active

TE Connectivity AMP Connectors

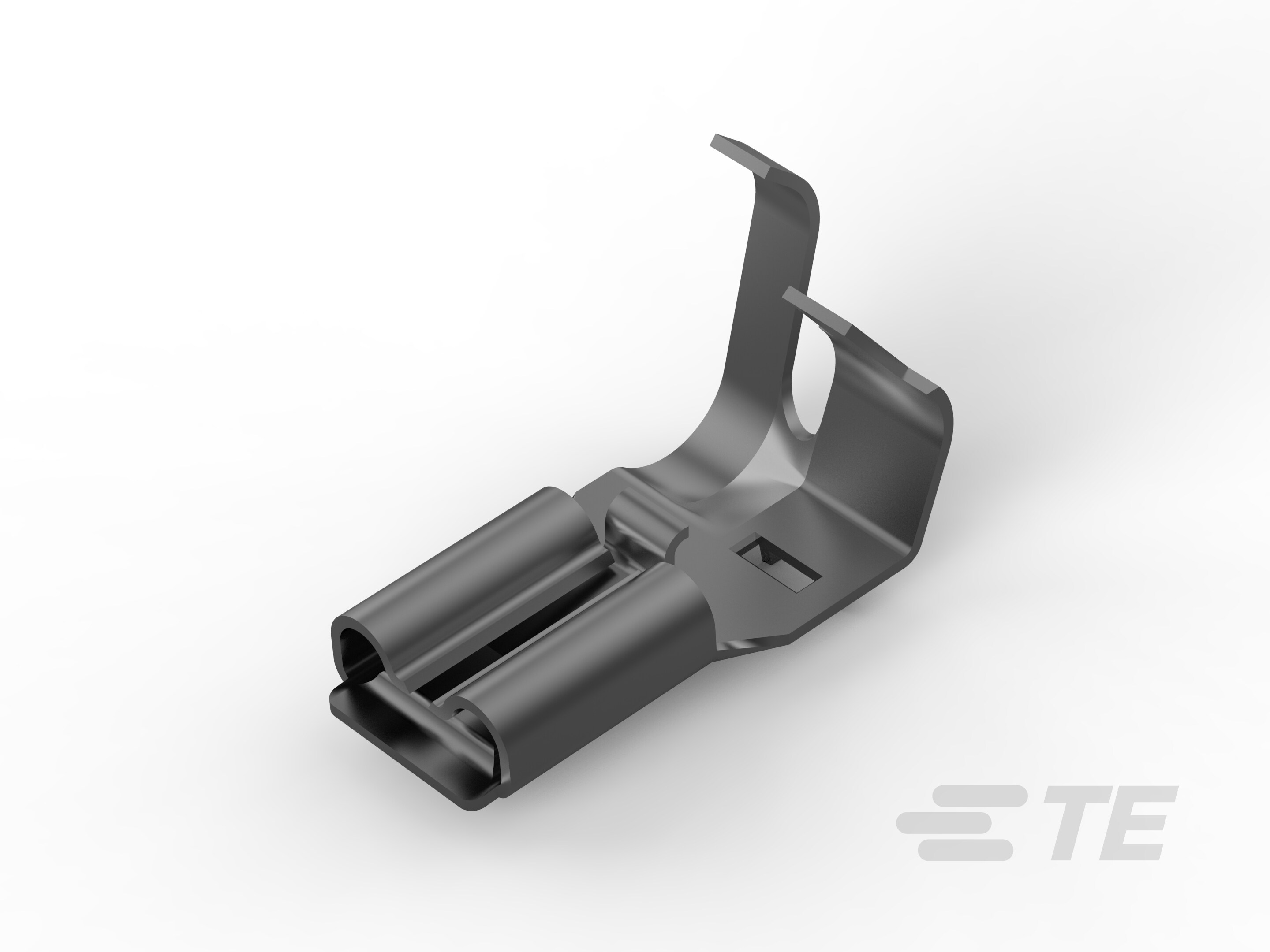

250 PL EX FLAG REC. 18-12AWG PTBR

Find alt

Alpha

175057-2

Active

TE Connectivity AMP Connectors

250 PL EX FLAG REC. 18-12AWG PTBR

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

Positive Lock 250 Series

Quick Disconnect Receptacle, 18 – 12 AWG, .82 – 3.31 mm² Wire, 6.35 mm [.25 in] Tab Width, Flag, Brass, Pre-Tin Plating, Strip/Reel, Positive Lock 250

Technical Specifications

Parameters and characteristics for this part

Specification	175057-2

Contact Finish	Tin
Contact Material	Copper Alloy
Gender	Female
Insulation	Non-Insulated
Mounting Type	Right Angle, Free Hanging (In-Line)
Tab Length	0.307 in
Tab Thickness	0.032 in
Tab Width	0.25 in
Terminal Angle	90 °
Terminal Type	Flag, Angled
Termination	Crimp
Wire Gauge (AWG) (Max)	18 AWG
Wire Gauge (AWG) (Min)	12 AWG

Positive Lock 250 Series

...

Part	Insulation Diameter (Min)	Insulation Diameter (Max)	Tab Thickness	Gender	Insulation	Terminal Angle	Terminal Type	Tab Width	Contact Material	Termination	Mounting Type	Contact Finish	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)
TE Connectivity AMP Connectors 926790-1	0.118 in	0.169 in	0.032 in	Female	Non-Insulated	90 °	Angled Flag	0.25 in	Phosphor Bronze	Crimp	Free Hanging (In-Line) Right Angle	Tin	14 AWG	17 AWG
TE Connectivity AMP Connectors 926790-3	0.118 in	0.169 in	0.032 in	Female	Non-Insulated	90 °	Angled Flag	0.25 in	Phosphor Bronze	Crimp	Free Hanging (In-Line) Right Angle	Tin	14 AWG	17 AWG
