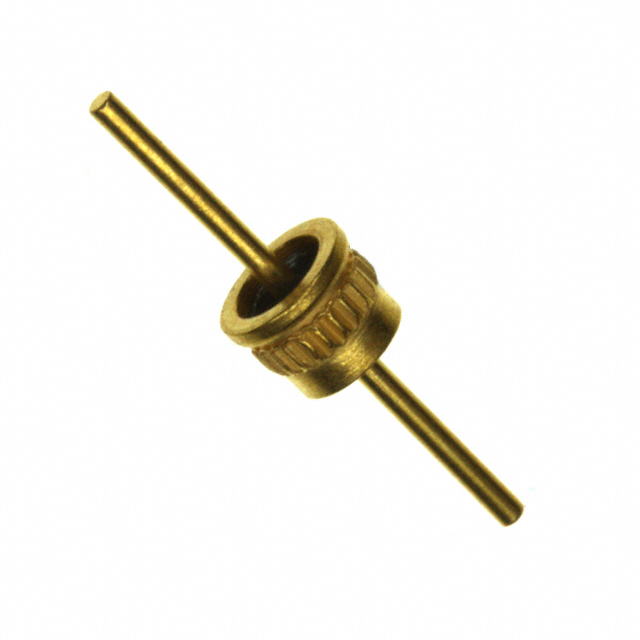

4304-000LF
ActiveTusonix a Subsidiary of CTS Electronic Components
CAP FEEDTHRU 10PF 200V AXIAL
4304-000LF
ActiveTusonix a Subsidiary of CTS Electronic Components
CAP FEEDTHRU 10PF 200V AXIAL
Description
General part information
4304-000LF
10 pF Feed Through Capacitor 200V 5 A Axial, Press Fit
Technical Specifications
Parameters and characteristics for this part
| Specification | 4304-000LF |
|---|---|
| Capacitance | 10 pF |
| Current | 5 A |
| Insertion Loss | 5 dB |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial, Press Fit |
| Size / Dimension Diameter | 0.156 in |
| Size / Dimension Length | 0.11 in |
| Tolerance (Negative) | 0 % |
| Tolerance (Positive) | 100 % |
| Type | Feed Through |
| Voltage - Rated | 200 VDC |
