290-1AB
ActiveWakefield Thermal Solutions
HEAT SINK, BLACK ANODIZED, 22 °C/W, TO-202, TO-218, TO-220, 30 MM, 12.7 MM, 25.4 MM
290-1AB
ActiveWakefield Thermal Solutions
HEAT SINK, BLACK ANODIZED, 22 °C/W, TO-202, TO-218, TO-220, 30 MM, 12.7 MM, 25.4 MM
Description
General part information
290-1AB

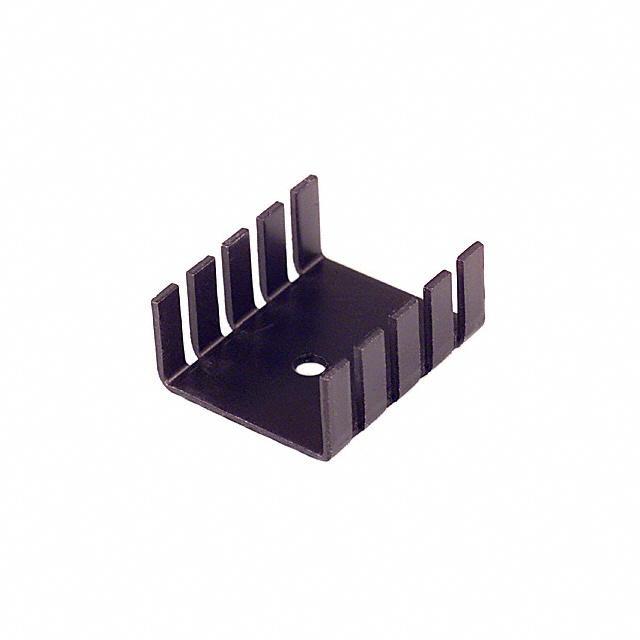

The 290-1AB is a board level power semiconductor Heat Sink for use with TO-202, TO-218 and TO-220 packages. It is made of aluminium with black anodized finish.
Technical Specifications
Parameters and characteristics for this part
| Specification | 290-1AB |
|---|---|
| Attachment Method | Bolt On |
| Fin Height | 0.5 in |
| Length | 1.18 in |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-220, TO-202, TO-218 |
| Power Dissipation | 2 W |
| Shape | Fins, Rectangular |
| Thermal Resistance | 22 °C/W, 7 °C/W |
| Type | Board Level |
| Width | 1 in |
