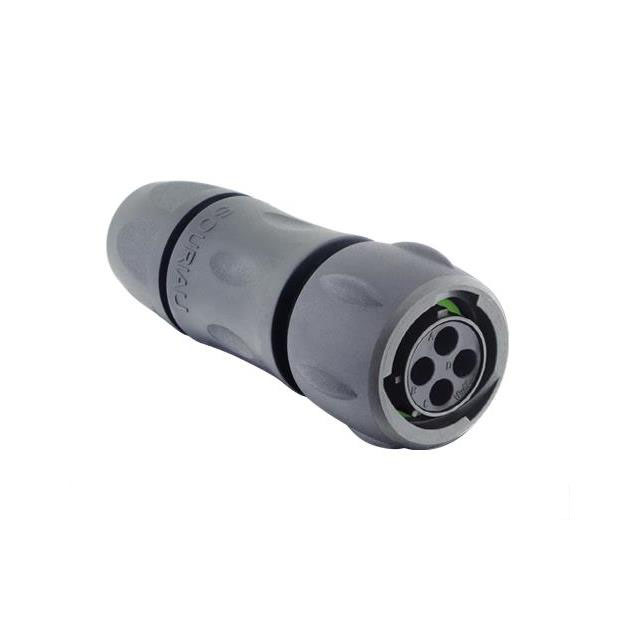

UTSX6JC104SW
ActiveAmphenol Aerospace Operations
PLUG, WITH CABLE GLAND BACKSHELL
UTSX6JC104SW
ActiveAmphenol Aerospace Operations
PLUG, WITH CABLE GLAND BACKSHELL
Description
General part information
UTSX6JC104SW
4 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut, UV Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | UTSX6JC104SW |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 16 S |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Backshell, Coupling Nut, UV Resistant |
| Housing Color | Black |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Insert Material | PA, Nylon, Polyamide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | W |
| Primary Material | Plastic |
| Shell Material | Nylon, Polyamide (PA) |
| Shell Size - Insert Length | 10 mm |
| Shell Size - Insert Width | 4 mm |
| Shielding | Unshielded |
| Type | For Female Sockets |
