9540 0601000

Active

Belden Inc.

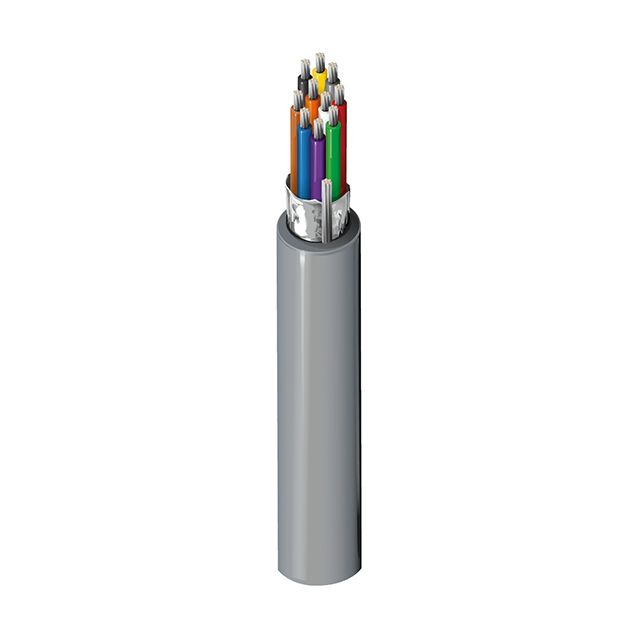

CABLE 10COND 24AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 10COND 24AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	9540 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.2 mm
Jacket (Insulation) Diameter [diameter]	0.244 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	10
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Wire Gauge	24 AWG

Part	Shield Coverage	Usage	Shield Material	Cable Type	Jacket (Insulation) Material	Shield Type	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Conductor Material	Number of Conductors	Length [x]	Length [x]	Features	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Length	Length	Voltage	Ratings
Belden Inc. 9540 060100	100 %	Computer	Aluminum	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Foil	24 AWG	6.2 mm	0.244 in	-30 ░C	80 C	Poly-Vinyl Chloride (PVC)	Copper Tinned	10	30.5 m	100 ft	Drain Wire	32 AWG	7	Chrome
Belden Inc. 9540 0601000	100 %	Computer	Aluminum	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Foil	24 AWG	6.2 mm	0.244 in	-30 ░C	80 C	Poly-Vinyl Chloride (PVC)	Copper Tinned	10			Drain Wire	32 AWG	7	Chrome	1000 ft	304.8 m
Belden Inc. 9540 060U500	100 %	Computer	Aluminum	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Foil	24 AWG	6.2 mm	0.244 in	-30 ░C	80 C	Poly-Vinyl Chloride (PVC)	Copper Tinned	10	152.4 m	500 '	Drain Wire	32 AWG	7	Chrome			300 V	UL Style 2464
Belden Inc. 9540 060500	100 %	Computer	Aluminum	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Foil	24 AWG	6.2 mm	0.244 in	-30 ░C	80 C	Poly-Vinyl Chloride (PVC)	Copper Tinned	10	152.4 m	500 '	Drain Wire	32 AWG	7	Chrome

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Conductor Multi-Conductor Cable Chrome 24 AWG Foil 1000.0' (304.8m)
