1-1623753-0

Active

TE Connectivity Passive Product

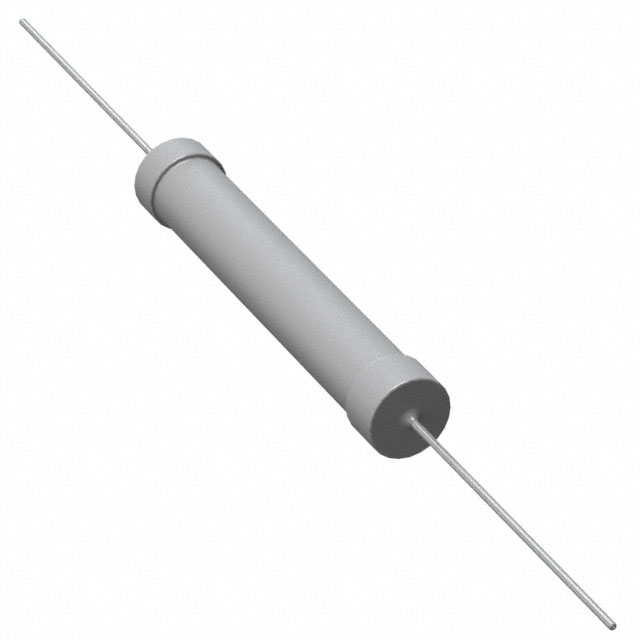

RES 4.22 OHM 1% 14W AXIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 4.22 OHM 1% 14W AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	1-1623753-0

Composition	Wirewound
Number of Terminations	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Resistance	4.22 Ohms
Size / Dimension [diameter]	0.315 "
Size / Dimension [x]	8 mm
Size / Dimension [y]	53.5 mm
Size / Dimension [z]	2.106 "
Supplier Device Package	Axial
Temperature Coefficient [Max]	60 ppm/°C
Temperature Coefficient [Min]	0 ppm/°C
Tolerance	1 %

Part	Composition	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Tolerance	Resistance	Temperature Coefficient [Max]	Temperature Coefficient [Min]	Supplier Device Package	Number of Terminations	Size / Dimension [diameter]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
TE Connectivity Passive Product 1-1623753-0	Wirewound	-55 °C	200 °C	Axial	1 %	4.22 Ohms	60 ppm/°C	0 ppm/°C	Axial	2	0.315 "	53.5 mm	2.106 "	8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	400	$ 1.73

General part information

4.22 Ohms ±1% 14W Through Hole Resistor Axial Wirewound
