9001SKR9P35LRR05
ObsoleteSCHNEIDER ELECTRIC
CONFIG SW BODY MUSH PB ILLUM
9001SKR9P35LRR05
ObsoleteSCHNEIDER ELECTRIC
CONFIG SW BODY MUSH PB ILLUM
Description
General part information
9001SKR9P35LRR05

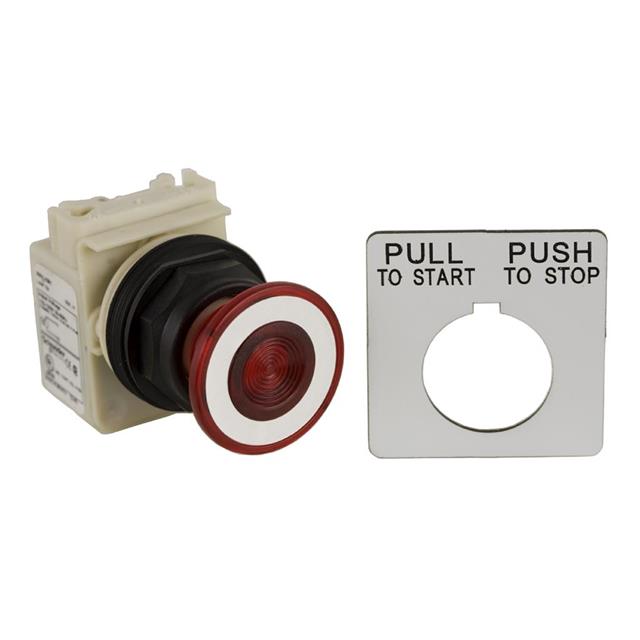

Configurable Switch Body Pushbutton, Mushroom Illuminated
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001SKR9P35LRR05 |
|---|---|
| Actuator Type | Mushroom, Pushbutton |
| Compatible Series | Schneider, Harmony 9001SK |
| Illumination | Illuminated |
| Panel Cutout Dimension | 30 mm |
| Panel Cutout Shape | Round |
| Requires | Illumination Source, Contact Block(s) |
| Type | Maintained |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
