Specification	MKRAWT-02-0000-0D0UD40E8

CCT (K)	2700 K
Color	White, Warm
CRI (Color Rendering Index)	90
Current - Max	1.25 A
Current - Test	700 mA
Flux (Maximum)	590 lm
Flux (Minimum)	550 lm
Flux (Typical)	570 lm
Height - Seated (Max)	0.166 in
Lumens/Watt	68 lm/W
Mounting Type	Surface Mount
Package / Case	2828 (7070 Metric)
Size / Dimension Length	0.276 in
Size / Dimension Width	0.276 in
Thermal Resistance of Package	1.7 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	12 VAC

MKRAWT Series

...

Part	Lumens/Watt	Flux (Minimum)	Flux (Typical)	Flux (Maximum)	Current - Test	Mounting Type	CRI (Color Rendering Index)	Size / Dimension Width	Size / Dimension Length	Color	CCT (K)	Package / Case	Voltage - Forward (Vf) (Typ)	Current - Max	Viewing Angle	Height - Seated (Max)	Thermal Resistance of Package	CCT Description
CreeLED, Inc. MKRAWT-02-0000-0B0BG40E7	104 lm/W	840 lm	870 lm	900 lm	1.4 A	Surface Mount	70	0.276 in	0.276 in	Warm White	3000 K	2828 (7070 Metric)	6 V	2.5 A	120 °	0.166 in	1.7 °C/W
CreeLED, Inc. MKRAWT-02-0000-0B0HH230F	111 lm/W	900 lm	935 lm	970 lm	1.4 A	Surface Mount	80	0.276 in	0.276 in	Warm White	3000 K	2828 (7070 Metric)	6 V	2.5 A	120 °	0.166 in	1.7 °C/W	4-Step MacAdam Ellipse
CreeLED, Inc. MKRAWT-00-0000-0D0HH440F	120 lm/W	970 lm	1005 lm	1040 lm	700 mA	Surface Mount	80	0.276 in	0.276 in	Neutral White	4000 K	2828 (7070 Metric)	12 VAC	1.25 A	120 °	0.166 in	1.7 °C/W	4-Step MacAdam Ellipse
CreeLED, Inc. MKRAWT-02-0000-0D0UE20E8	73 lm/W	590 lm	613 lm	635 lm	700 mA	Surface Mount	90	0.276 in	0.276 in	Warm White	2700 K	2828 (7070 Metric)	12 VAC	1.25 A	120 °	0.166 in	1.7 °C/W
CreeLED, Inc. MKRAWT-02-0000-0B0HG450H	104 lm/W	840 lm	870 lm	900 lm	1.4 A	Surface Mount	80	0.276 in	0.276 in	Cool White	5000 K	2828 (7070 Metric)	6 V	2.5 A	120 °	0.166 in	1.7 °C/W	2-Step MacAdam Ellipse
CreeLED, Inc. MKRAWT-00-0000-0B0BG40E6	104 lm/W	840 lm	870 lm	900 lm	1.4 A	Surface Mount	70	0.276 in	0.276 in	Warm White	3500 K	2828 (7070 Metric)	6 V	2.5 A	120 °	0.166 in	1.7 °C/W
CreeLED, Inc. MKRAWT-00-0000-0D0HH40E4	120 lm/W	970 lm	1005 lm	1040 lm	700 mA	Surface Mount	80	0.276 in	0.276 in	Neutral White	4500 K	2828 (7070 Metric)	12 VAC	1.25 A	120 °	0.166 in	1.7 °C/W
CreeLED, Inc. MKRAWT-00-0000-0D0HH20E8	111 lm/W	900 lm	935 lm	970 lm	700 mA	Surface Mount	80	0.276 in	0.276 in	Warm White	2700 K	2828 (7070 Metric)	12 VAC	1.25 A	120 °	0.166 in	1.7 °C/W

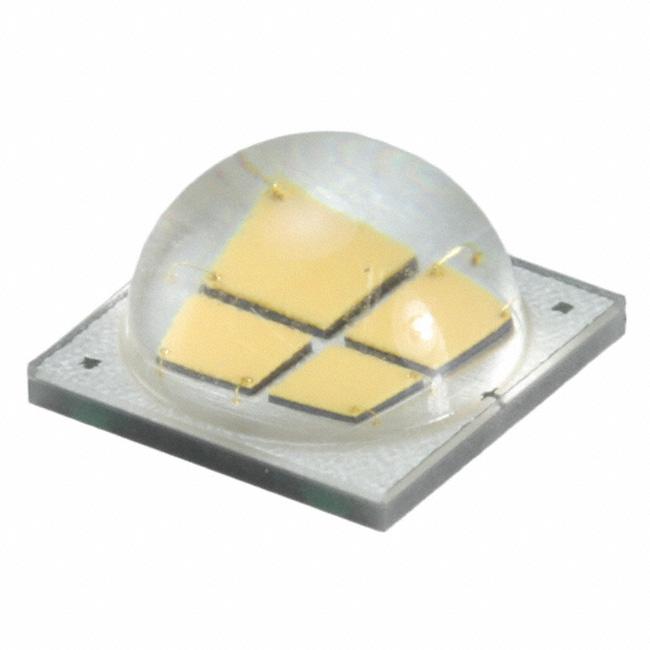

CreeLED, Inc. MKRAWT-02-0000-0D0HH245F	111 lm/W	900 lm	935 lm	970 lm	700 mA	Surface Mount	80	0.276 in	0.276 in	Neutral White	4500 K	2828 (7070 Metric)	12 VAC	1.25 A	120 °	0.166 in		4-Step MacAdam Ellipse
CreeLED, Inc. MKRAWT-02-0000-0D0HG230F	96 lm/W	780 lm	810 lm	840 lm	700 mA	Surface Mount	80	0.276 in	0.276 in	Warm White	3000 K	2828 (7070 Metric)	12 VAC	1.25 A	120 °	0.166 in	1.7 °C/W	4-Step MacAdam Ellipse
