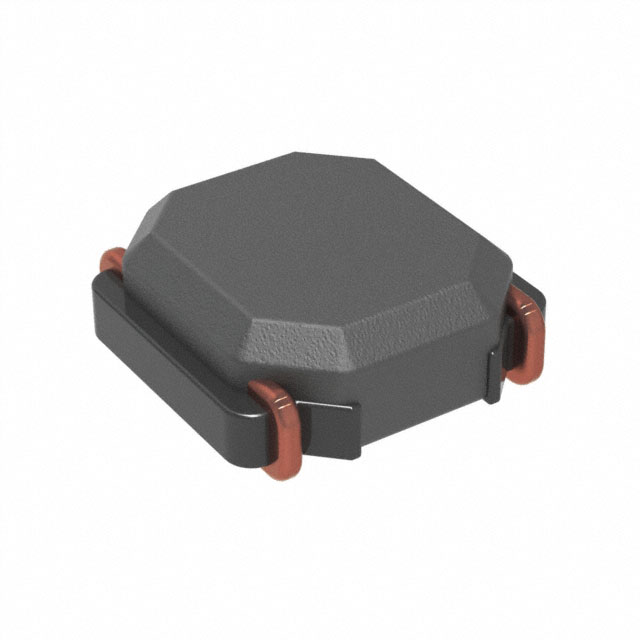

LMLP0303N2R2CTAR
ActiveKYOCERA AVX
FIXED IND 2.2UH 1.1A 95 MOHM SMD
LMLP0303N2R2CTAR
ActiveKYOCERA AVX
FIXED IND 2.2UH 1.1A 95 MOHM SMD
Description
General part information
LMLP0303N2R2CTAR
2.2 µH Shielded Inductor 1.1 A 95mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | LMLP0303N2R2CTAR |
|---|---|
| Current - Saturation (Isat) | 1.1 A |
| Current Rating | 1.1 A |
| DC Resistance (DCR) | 95 mOhm |
| Height - Seated (Max) | 0.039 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.118 in |
| Size / Dimension Width | 0.118 in |
| Tolerance | 30 % |
