7-300-000-BA
ObsoleteCTS Thermal Management Products

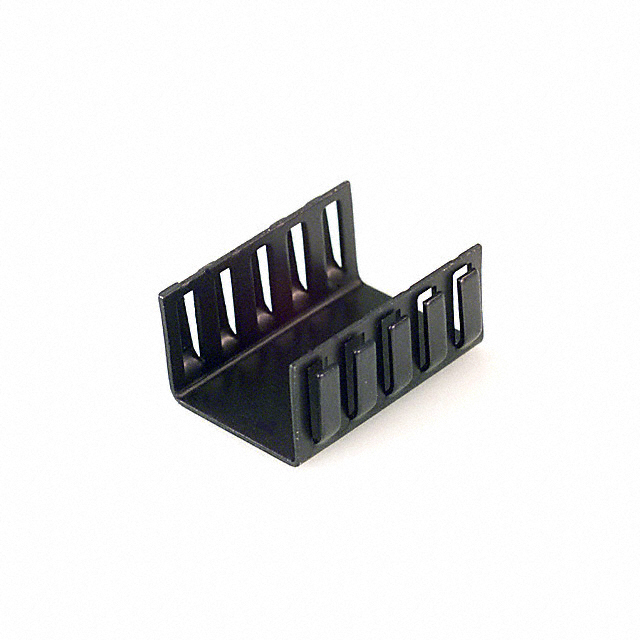

HEATSINK HORZ .62"H BLACK TO-220
7-300-000-BA
ObsoleteCTS Thermal Management Products
HEATSINK HORZ .62"H BLACK TO-220
Description
General part information
7-300-000-BA
Heat Sink TO-220 Aluminum 1.5W @ 40°C Board Level
Technical Specifications
Parameters and characteristics for this part
| Specification | 7-300-000-BA |
|---|---|
| Attachment Method | Bolt On |
| Fin Height | 0.62 in |
| Length | 1.31 in |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Power Dissipation | 1.5 W |
| Shape | Fins, Rectangular |
| Type | Board Level |
| Width | 1.09 in |
