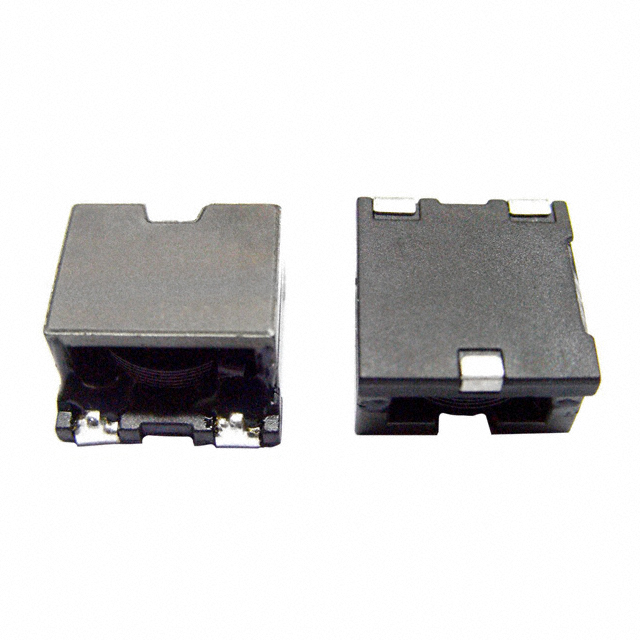

SCEP147H-3R5
ActiveSignal Transformer
FIXED IND 3.5UH 13.5A 7.5MOHM SM
SCEP147H-3R5
ActiveSignal Transformer
FIXED IND 3.5UH 13.5A 7.5MOHM SM
Description
General part information
SCEP147H-3R5
3.5 µH Shielded Inductor 13.5 A 7.5mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SCEP147H-3R5 |
|---|---|
| Current - Saturation (Isat) | 20.8 A |
| Current Rating | 13.5 A |
| DC Resistance (DCR) (Max) | 7.5 mOhm |
| Height - Seated (Max) | 0.319 in |
| Inductance | 3.5 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.591 in |
| Size / Dimension Width | 0.587 in |
| Tolerance | 20 % |
