Technical Specifications
Parameters and characteristics for this part
| Specification | 9L26010 008H300 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 34 AWG, 7 Strands |
| Current Rating (Amps) | 1.5 A |
| First Conductor Mark | Blue |
| Insulation Resistance | 10 GOhm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | 91.44 m |
| Length | 300 ft |
| Number of Conductors | 10 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Ratings | UL Style 2651 |
| Ribbon Thickness | 0.99 mm |
| Ribbon Thickness | 0.039 in |
| Ribbon Width [custom] | 0.5 " |
| Ribbon Width [custom] | 12.7 mm |
| Shielding | Unshielded |
| Voltage | 300 V |
| Wire Gauge | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 300 | $ 1.95 | |
Description
General part information
9L26010 Series

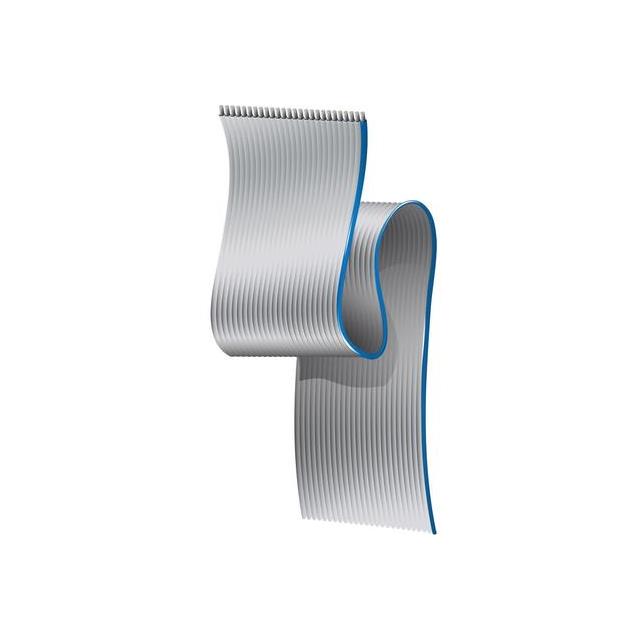

Flat Ribbon Cable Gray 10 Conductors 0.050" (1.27mm) Flat Cable 300.0' (91.44m)
