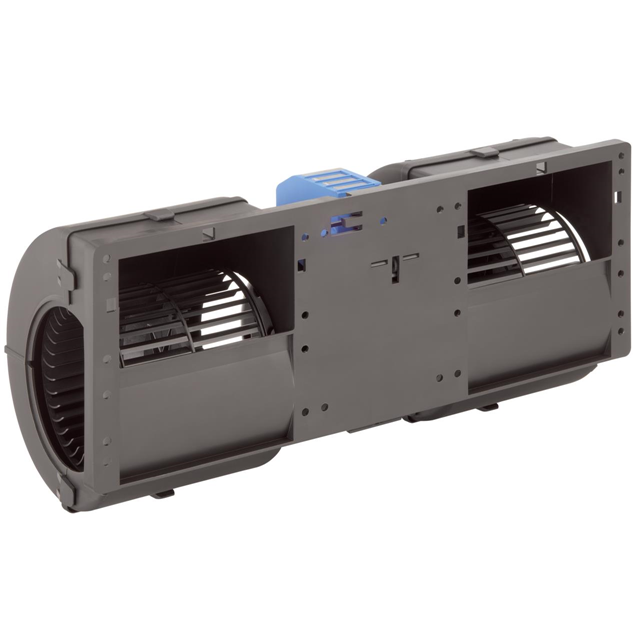

K3G097-AK28-20
Activeebm-papst Inc.
FAN BLOWER CF 139.5X351MM 26VDC
Deep-Dive with AI
Search across all available documentation for this part.
K3G097-AK28-20
Activeebm-papst Inc.
FAN BLOWER CF 139.5X351MM 26VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | K3G097-AK28-20 |
|---|---|
| Air Flow | 505 CFM |
| Air Flow | 14.3 mł/min |
| Bearing Type | Ball |
| Current Rating (Amps) | 13.2 A |
| Fan Type | Blower, Centrifugal (Dual) |
| Features | Locked Rotor Protection, Thermal Overload Protector (TOP), PWM Control |
| Material - Blade | Polyamide (PA), Nylon |
| Material - Frame | Polypropylene (PP) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 345 W |
| RPM | 3500 RPM |
| Size / Dimension | Rectangular/Rounded |
| Size / Dimension [x] | 139.5 mm |
| Size / Dimension [y] | 170.5 mm |
| Termination | 6 Position Rectangular Connector |
| Voltage - Rated | 26 VDC |
| Voltage Range [Max] | 32 VDC |
| Voltage Range [Min] | 16 VDC |
| Weight | 2.1 kg |
| Weight | 4.7 lbs |
| Width [x] | 351 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 344.80 | |
Description
General part information
K3G097-AK28-20
Fan Blower, Centrifugal (Dual) 26VDC Rectangular/Rounded - 139.5mm L x 170.5mm H Ball 505.0 CFM (14.30mł/min) 6 Position Rectangular Connector
Documents
Technical documentation and resources
No documents available
