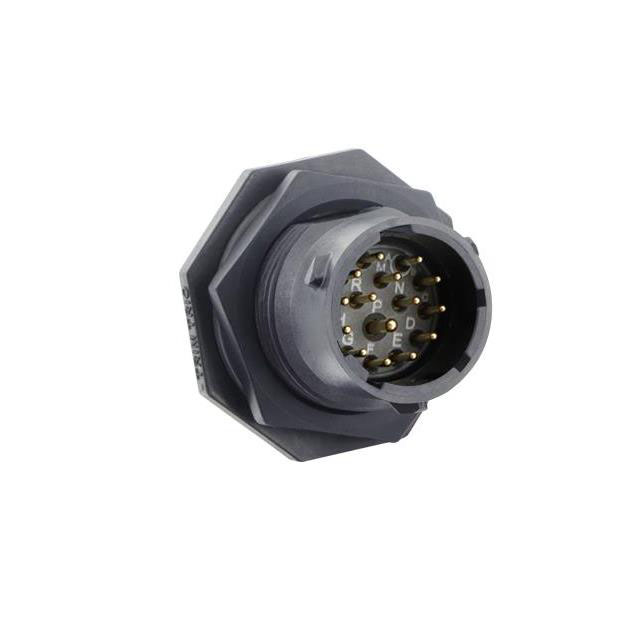

UTSX714E15PW
ActiveAmphenol Aerospace Operations
JAM NUT RECEPTACLE, WITHOUT BACK
UTSX714E15PW
ActiveAmphenol Aerospace Operations
JAM NUT RECEPTACLE, WITHOUT BACK
Description
General part information
UTSX714E15PW
15 Position Circular Connector Receptacle, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | UTSX714E15PW |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Current Rating Options | 12A, 5A |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Insert Material | Neoprene |
| Material Flammability Rating | UL94 HB |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Positions | 15 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | W |
| Primary Material | Plastic |
| Shell Material | Nylon, Polyamide (PA) |
| Shell Size - Insert (Maximum) | 15 |
| Shell Size - Insert (Minimum) | 14 S |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating | 250 V, 600 V |
