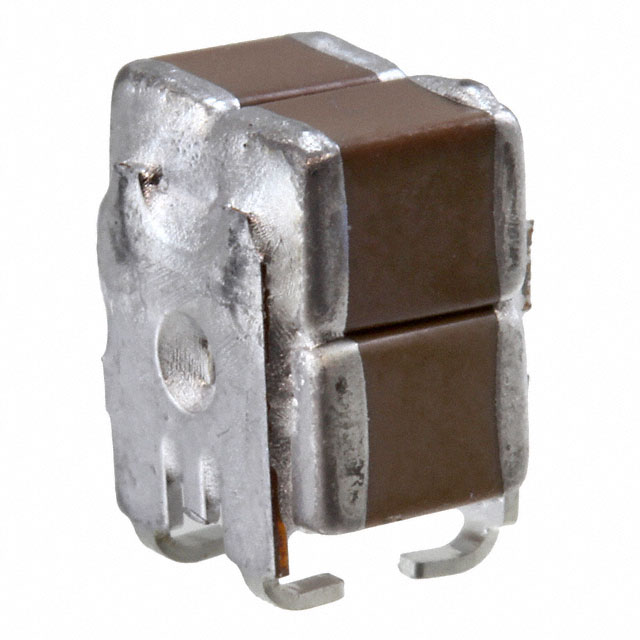

ST105C396MAK02
ActiveKYOCERA AVX
CAP CER 39UF 50V X7R 4SMD
ST105C396MAK02
ActiveKYOCERA AVX
CAP CER 39UF 50V X7R 4SMD
Description
General part information
ST105C396MAK02
39 µF ±20% 50V Ceramic Capacitor X7R Stacked SMD, 4 J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ST105C396MAK02 |
|---|---|
| Applications | SMPS Filtering, Bypass, Decoupling |
| Capacitance | 39 µF |
| Features | Low ESL (Stacked) |
| Lead Spacing | 0.15 in |
| Lead Style | J-Lead |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Stacked SMD, 4 J-Lead |
| Package Leads | 4 J-Lead |
| Package Name | Stacked SMD |
| Size / Dimension Length | 0.21 in |
| Size / Dimension Width | 0.19 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.22 in |
| Tolerance | 20 % |
| Voltage - Rated | 50 V |
