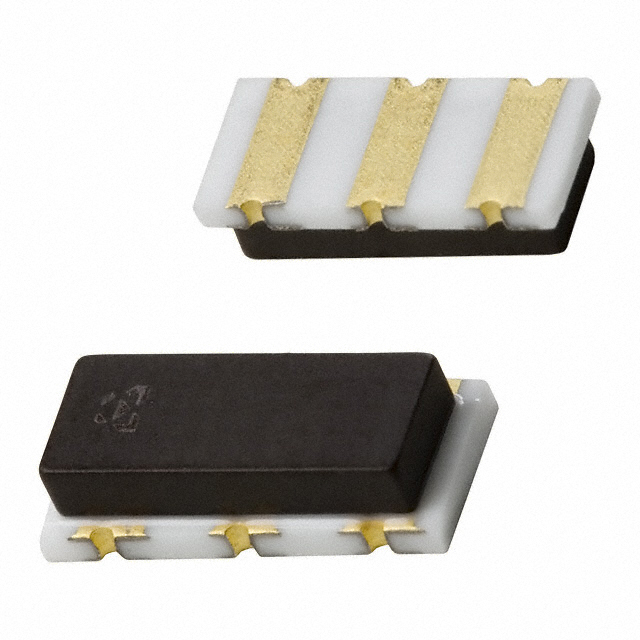

PBRC4.00HR10X000
ObsoleteKYOCERA AVX
CERAMIC RES 4.0000MHZ 30PF SMD
PBRC4.00HR10X000
ObsoleteKYOCERA AVX
CERAMIC RES 4.0000MHZ 30PF SMD
Description
General part information
PBRC4.00HR10X000
4 MHz Ceramic Resonator Built in Capacitor 30 pF ±0.3% -40°C ~ 85°C Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PBRC4.00HR10X000 |
|---|---|
| Capacitance | 30 pF |
| Features | Built in Capacitor |
| Frequency | 4 MHz |
| Frequency Stability | 0.3 % |
| Frequency Tolerance | 0.1 % |
| Height | 0.079 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 3-SMD, Non-Standard |
| Size / Dimension Length | 0.291 in |
| Size / Dimension Width | 0.134 in |
| Type | Ceramic |
