ZB5AW143
ActiveSCHNEIDER ELECTRIC

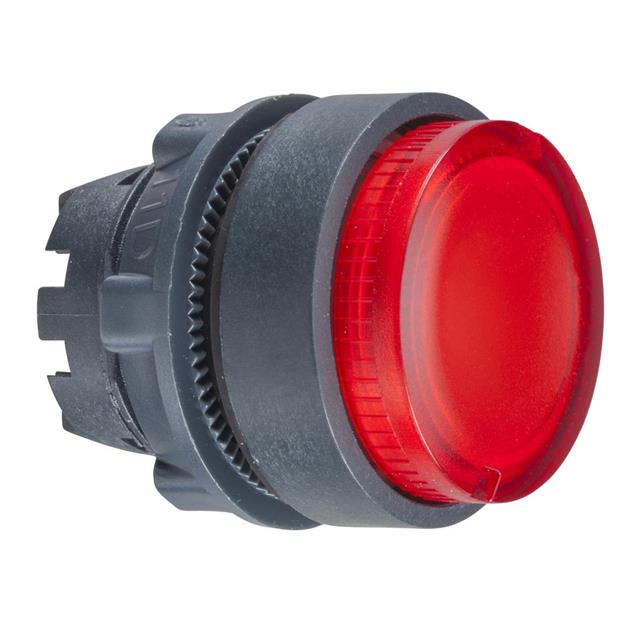

SWITCH ACTUATOR, SCHNEIDER HARMONY XB5 SERIES ILLUMINATED PUSHBUTTON SWITCHES
ZB5AW143
ActiveSCHNEIDER ELECTRIC
SWITCH ACTUATOR, SCHNEIDER HARMONY XB5 SERIES ILLUMINATED PUSHBUTTON SWITCHES
Description
General part information
ZB5AW143
Configurable Switch Body Pushbutton, Round Illuminated
Technical Specifications
Parameters and characteristics for this part
| Specification | ZB5AW143 |
|---|---|
| Actuator Type | Pushbutton, Round |
| Compatible Series | Harmony XB5, Schneider |
| Illumination | Illuminated |
| Panel Cutout Dimension | 22 mm |
| Panel Cutout Shape | Round |
| Requires | Illumination Source, Contact Block(s) |
| Type | Momentary |
