MKP1848H63590KY2
ActiveVishay Dale
MKP,35ΜF, 920 VDC, PITCH 52,5 MM 2PINS ROHS COMPLIANT: YES
MKP1848H63590KY2
ActiveVishay Dale
MKP,35ΜF, 920 VDC, PITCH 52,5 MM 2PINS ROHS COMPLIANT: YES
Description
General part information
MKP1848H63590KY2

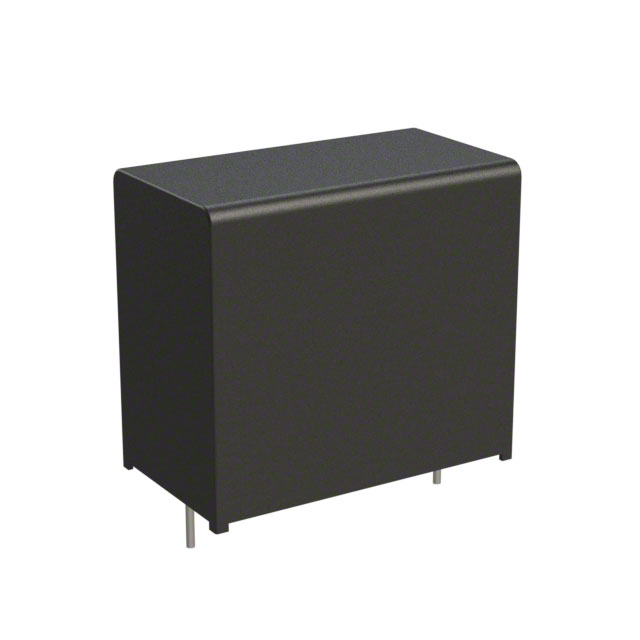

35 µF Film Capacitor 920V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | MKP1848H63590KY2 |
|---|---|
| Applications | DC Filtering, DC Link, Automotive |
| Capacitance | 35 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 4.4 mOhm |
| Features | Low ESR, 85C/85% Humidity; Low ESR, 85C/85% Humidity, Low ESL |
| Height - Seated (Max) | 2.008 in |
| Lead Spacing | 2.067 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 2.264 in |
| Size / Dimension Width | 1.378 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - DC | 920 V |
