T16C337K075EZSS
ActiveVishay Dale
CAP TANT 330UF 10% 75V AXIAL
T16C337K075EZSS
ActiveVishay Dale
CAP TANT 330UF 10% 75V AXIAL
Description
General part information
T16C337K075EZSS

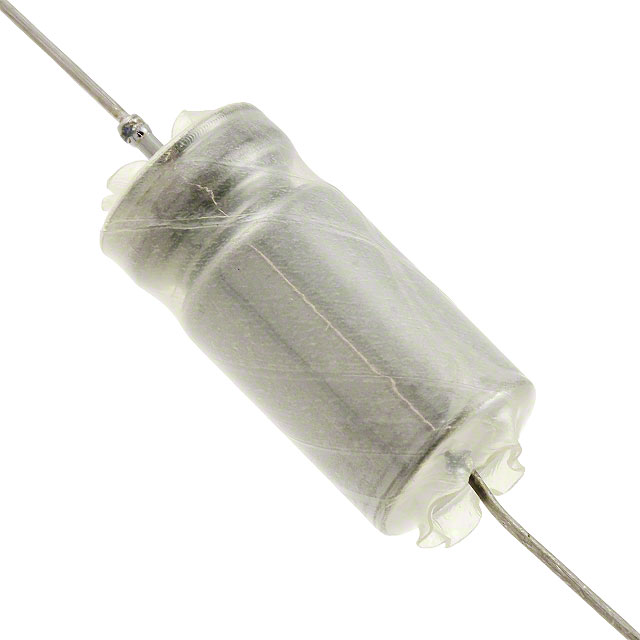

330 µF Hermetically Sealed Tantalum Capacitors 75 V Axial, Can 1Ohm @ 120Hz
Technical Specifications
Parameters and characteristics for this part
| Specification | T16C337K075EZSS |
|---|---|
| Capacitance | 330 µF |
| ESR (Equivalent Series Resistance) | 1 Ohm |
| Features | Wet Tantalum |
| Lifetime | 2000 Hrs |
| Manufacturer Size Code | C |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Axial |
| Size / Dimension Diameter | 0.39 in |
| Size / Dimension Length | 0.766 in |
| Tolerance | 10 % |
| Type | Hermetically Sealed |
| Voltage - Rated | 75 V |
