Description
General part information

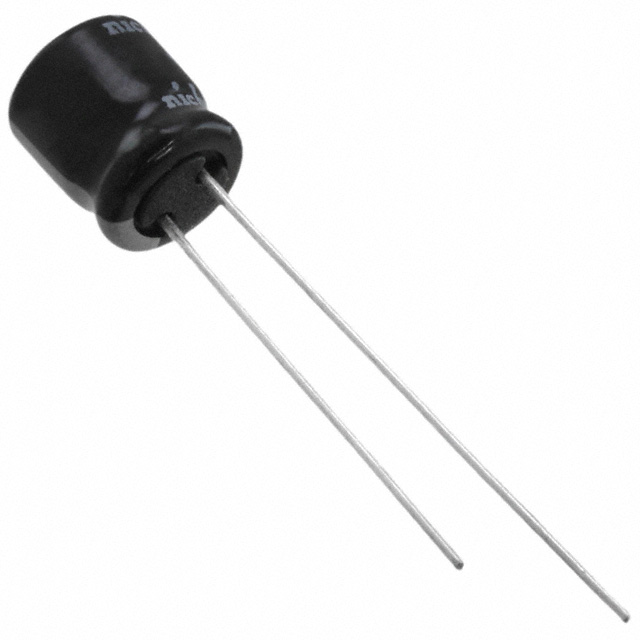

USV0J101MFD1TE
100 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | USV0J101MFD1TE |
|---|---|
| Applications | General Purpose |
| Capacitance | 100 µF |
| Height - Seated (Max) | 0.315 in |
| Lead Spacing | 0.098 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 77 mA, 115.5 mA |
| Size / Dimension Diameter | 0.248 in |
| Tolerance | 20 % |
| Voltage - Rated | 6.3 V |
