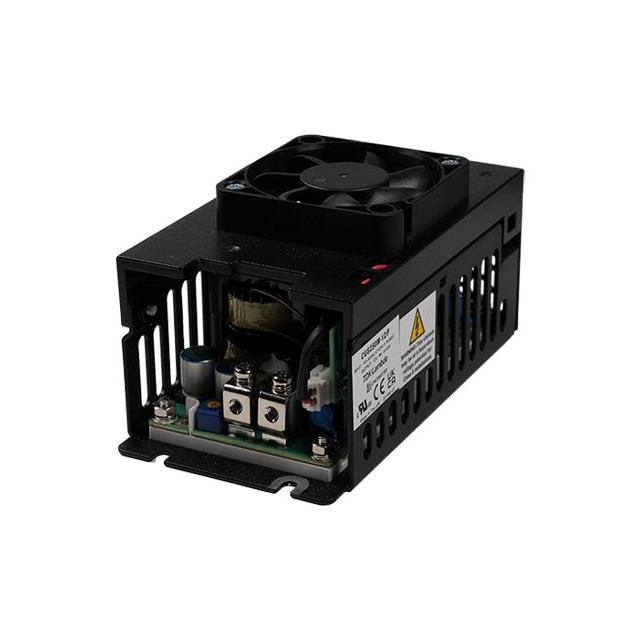

CUS250M-12/F
ActiveAC/DC ENCLOSED POWER SUPPLY (PSU), ITE, HOUSEHOLD, LABORATORY & MEDICAL, 1 OUTPUTS, 250 W, 12 V
CUS250M-12/F
ActiveAC/DC ENCLOSED POWER SUPPLY (PSU), ITE, HOUSEHOLD, LABORATORY & MEDICAL, 1 OUTPUTS, 250 W, 12 V
Description
General part information
CUS250M-12/F
CUS250M-12/F is a CUS250M series AC/DC power supply. The compact CUS250M is packaged in the industry standard 2x4" footprint. With Medical and ITE certifications, the unit can be used in both Class I & Class II (no ground wire) applications, and meets Class B conducted and radiated EMI with generous margins and easier system EMC compliance. It features up to 250W utilizing convection and conduction cooling and it provides quiet operation. It includes overcurrent, overvoltage, over temperature protection. Application includes medical, industrial, test, LED, broadcast, COMM. It is EN60335-1 compliant and suitable for household and similar electrical appliances. Certified by IEC/ES/EN60601-1, IEC/UL/EN62368-1, 60950-1.
Technical Specifications
Parameters and characteristics for this part
| Specification | CUS250M-12/F |
|---|---|
| Applications | Laboratory, Medical, ITE (Commercial) |
| Approval Agency | CE, UKCA |
| Current - Output 1 | 20.83 A |
| Efficiency | 94 % |
| Features | Universal Input, PFC, Standby Output, Adjustable Output |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 250 W |
| Size / Dimension Height | 1.56 in |
| Size / Dimension Length | 4.69 in |
| Size / Dimension Width | 2.52 in |
| Standard Number | 61010-1, 60601-1, 60950-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 12 V |
