KMF0.2293.11

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C18 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C18 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	KMF0.2293.11

Accomodates a Fuse	True
Approval Agency	ENEC, CCC, cURus
Connector Style	IEC 320-C18
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Fuse Holder
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	28.8 mm
Panel Cutout Dimensions [y]	47.8 mm
Panel Thickness [Max]	2.5 mm
Panel Thickness [Max]	0.098 in
Panel Thickness [Min]	1 mm
Panel Thickness [Min]	0.039 in
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT MOD RCPT IEC320-C18 PNL

Part	Connector Style	Termination	Termination	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Approval Agency	Fuse Holder, Drawer	Material Flammability Rating	Accomodates a Fuse	Ingress Protection	Connector Type	Filter Type	Current Rating - Filter	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Switch Features	Mounting Type
SCHURTER Inc. KMF0.2293.11	IEC 320-C18	0.189 ", 4.8 mm	Quick Connect	2.5 mm	1 mm	0.098 in	0.039 in	CCC, cURus, ENEC	Fuse Holder	UL94 V-0		IP40	Receptacle, Male Blades - Module	Filtered (EMI, RFI) - Commercial, Medical	10 A	250 VAC	10 A	47.8 mm	28.8 mm	Switch On-Off	Panel Mount, Snap-In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.43

General part information

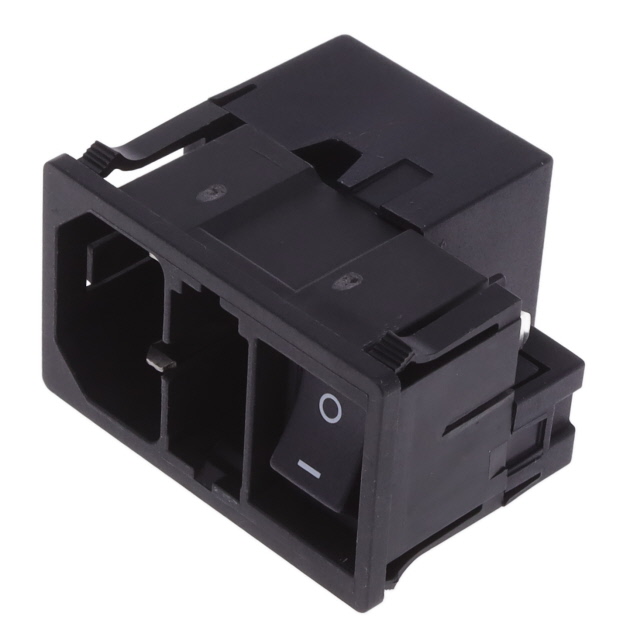

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C18 Panel Mount, Snap-In
