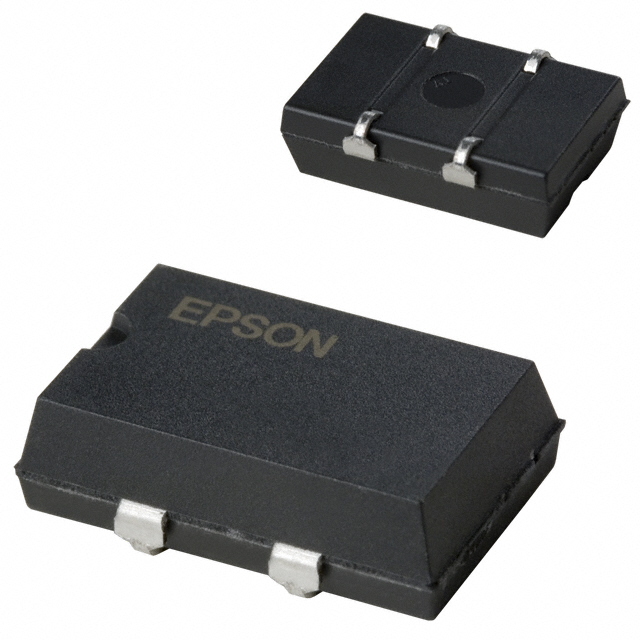

SGR-8002JA-PTB
XO (Standard) TTL 1 MHz ~ 125 MHz Programmable Oscillator 5V Enable/Disable 4-SOJ, 5.08mm pitch
Technical Specifications
Parameters and characteristics for this part
| Specification | SGR-8002JA-PTB |
|---|---|
| Available Frequency Range (Maximum) | 125 MHz |
| Available Frequency Range (Minimum) | 1 MHz |
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 30 mA |
| Current - Supply (Max) | 45 mA |
| Frequency Stability | 50 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.185 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output | TTL |
| Package / Case | 5.08mm pitch, 4-SOJ |
| Package Pitch | 0.2 in |
| Size / Dimension Length | 0.551 in |
| Size / Dimension Width | 0.341 in |
| Type | XO (Standard) |
| Voltage - Supply | 5 VDC |
