Connectors, Interconnects

D38999/24WJ43PN

Active

Amphenol Aerospace Operations

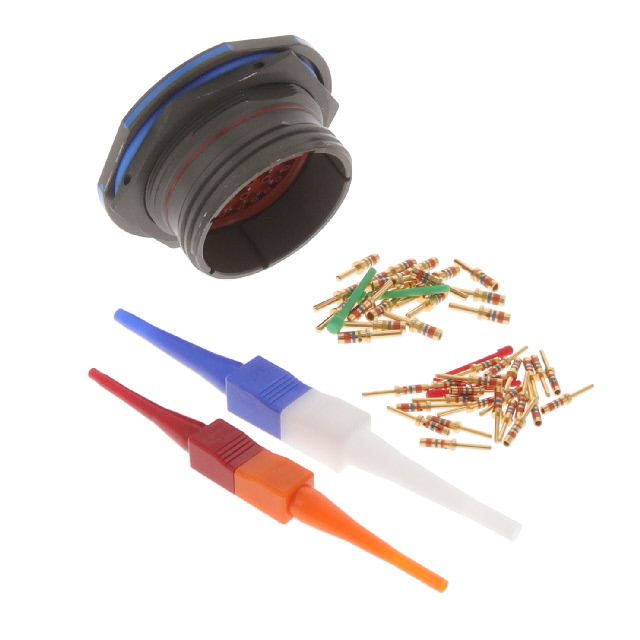

CONN RCPT MALE 43POS GOLD CRIMP

Connectors, Interconnects

D38999/24WJ43PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 43POS GOLD CRIMP

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24WJ43PN

Applications	Military, Aerospace, Marine, Aviation
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Fastening Type	Threaded
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Positions	43
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-65 °C
Orientation	N (Normal)
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert (Maximum)	43
Shell Size - Insert (Minimum)	25
Shell Size (MIL)	J
Shielding	Shielded
Termination	Crimp

D38999/24WJ Series

...

Part	Housing Color	Connector Type	Shell Finish	Note	Fastening Type	Shell Material	Insert Material	Shell Size (MIL)	Contact Size	Contact Type	Type	Mounting Type	Qualification	Grade	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Orientation	Shell Size - Insert Length	Shell Size - Insert Width	Number of Positions	Mounting Feature	Includes Total Count	Includes	Insert Quantity	Ingress Protection	Primary Material	Ingress Protection Description	Ingress Protection IP Rating	Contact Material	Shielding	Applications	Contact Finish - Mating	Termination	Current Rating Options	Contact Finish Thickness - Mating	Color	Features	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Contact Shape	Current Rating	Position Types
Amphenol Aerospace Operations D38999/24WJ24SAL	Green	Receptacle Housing	Olive Drab Cadmium	Contacts Not Included	Threaded	Aluminum	Thermoplastic	J	12 16	Crimp	For Female Sockets	Panel Mount	MIL-DTL-38999 Series III	Military	200 °C	-65 °C	UL94 V-0	N (Normal)	25 mm	24 mm	24 pos	Bulkhead Front Side Nut	1 pcs 1 pc	Insert Shell	1 pcs	Waterproof	Composite
Amphenol Aerospace Operations D38999/24WJ90SAL
Amphenol Aerospace Operations D38999/24WJ4SN		Female Sockets Receptacle	Olive Drab Cadmium		Threaded	Aluminum	Thermoplastic	J				Panel Mount	MIL-DTL-38999 Series III	Military	175 °C	-65 °C		N (Normal)	25 mm	4 mm	56	Bulkhead Front Side Nut					Metal	Dust Tight Waterproof	IP67	Copper Alloy	Shielded	Aviation Marine Military	Gold	Crimp	13A 7.5A	50 µin	Olive Drab
Amphenol Aerospace Operations D38999/24WJ4SN		Female Sockets Receptacle	Olive Drab Cadmium		Threaded	Aluminum	Thermoplastic	J				Panel Mount	MIL-DTL-38999 Series III	Military	175 °C	-65 °C		N (Normal)	25 mm	4 mm	56	Bulkhead Front Side Nut				Environment Resistant	Metal			Copper Alloy	Shielded	Aerospace Aviation Marine Military	Gold	Crimp		50 µin	Olive Drab	Self Locking
Amphenol Aerospace Operations D38999/24WJ37AN	Olive Drab	Receptacle Housing	Cadmium	Contacts Not Included	Threaded	Aluminum		J	16 S	Crimp	For Male Pins	Panel Mount	MIL-DTL-38999 Series III	Military	175 °C	-65 °C		N (Normal)			37 pos	Bulkhead Front Side Nut				Environment Resistant	Metal				Shielded								25	37	Circular
Amphenol Aerospace Operations D38999/24WJ24SEL	Green	Receptacle Housing	Olive Drab Cadmium	Contacts Not Included	Threaded	Aluminum	Thermoplastic	J	12 16	Crimp	For Female Sockets	Panel Mount	MIL-DTL-38999 Series III	Military	200 °C	-65 °C	UL94 V-0	E	25 mm	24 mm	24 pos	Bulkhead Front Side Nut	1 pcs 1 pc	Insert Shell	1 pcs	Waterproof	Composite
Amphenol Aerospace Operations D38999/24WJ61SE		Female Sockets Receptacle	Olive Drab Cadmium		Threaded	Aluminum		J				Panel Mount			175 °C	-65 °C		E			61	Bulkhead Front Side Nut					Metal			Copper Alloy	Shielded	Aerospace Aviation Marine Military	Gold	Crimp		50 µin	Olive Drab		25	61
Amphenol Aerospace Operations D38999/24WJ29PE		Male Pins Receptacle	Olive Drab Cadmium		Threaded	Aluminum	Thermoplastic	J				Panel Mount			175 °C	-65 °C		E			29	Bulkhead Front Side Nut					Metal	Dust Tight Waterproof	IP67	Copper Alloy	Shielded	Aviation Marine Military	Gold	Crimp		50 µin	Olive Drab		25	29		13 A
Amphenol Aerospace Operations D38999/24WJ8SA		Female Sockets Receptacle	Olive Drab Cadmium		Threaded	Aluminum	Thermoplastic	J				Panel Mount			175 °C	-65 °C		A	25	8	8	Bulkhead Front Side Nut					Metal	Dust Tight Waterproof	IP67	Copper Alloy	Shielded	Aviation Marine Military	Gold	Crimp		50 µin	Olive Drab					45 A	Triax
Amphenol Aerospace Operations D38999/24WJ43SNL	Olive Drab	Receptacle Housing	Cadmium	Contacts Not Included	Threaded	Aluminum	Thermoplastic	J	16 20	Crimp	For Female Sockets	Panel Mount	MIL-DTL-38999 Series III	Military	175 °C	-65 °C		N (Normal)			43	Bulkhead Front Side Nut				Environment Resistant					Unshielded								25	43	Circular
