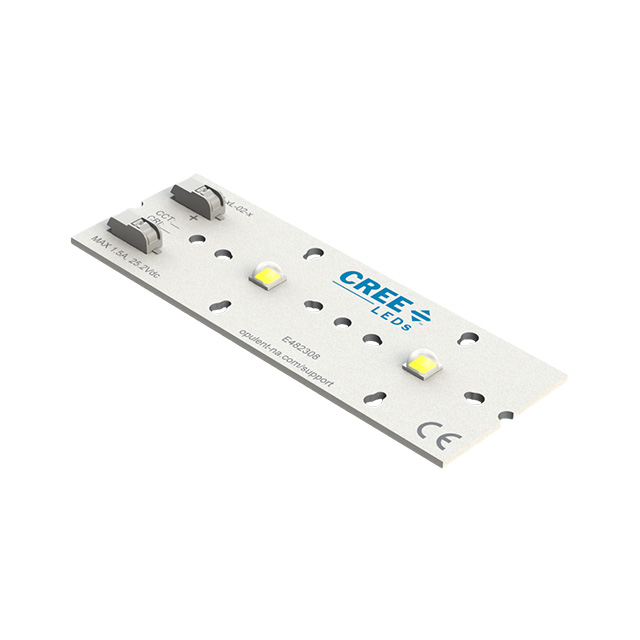

XHP50A-0L-02-0D0BH430E

New Energy

LED MOD XHP50A WH LNR STRP 3000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XHP50A-0L-02-0D0BH430E

New Energy

LED MOD XHP50A WH LNR STRP 3000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 12.16

Description

General part information

XHP50A Series

LED Lighting COBs Engines Modules LED Module XHP50A White, Warm Linear Light Strip

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XHP50A-0L-02-0D0BH430E	XHP50A Series

CCT (K)	3000 K	2700 - 5700 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	White, Warm	Cool, White, Warm, Neutral
Configuration	Linear Light Strip	Starboard, Linear Light Strip, Square
CRI (Color Rendering Index)	70	70 - 90
Current - Max	-	1.5 - 3 A
Current - Max [Max]	1.5 A	1.5 A
Current - Test	-	1.4 - 700 A
Lens Type	Domed	Domed
Lumens/Watt @ Current - Test	121 lm/W	62 - 139 lm/W
Luminous Flux @ Current/Temperature	1940 lm	900 - 4880 lm
Luminous Flux @ Current/Temperature	-	1040 lm
Luminous Flux @ Current/Temperature	-	970 lm
Size / Dimension	-	19.89 mm
Size / Dimension [x]	93.98 mm	5.2 - 93.98 in
Size / Dimension [y]	1.3 in	1.3 - 73.15 in
Temperature - Test	85 °C	85 °C
Type	LED Module	LED Module
Viewing Angle	-	120 °
Voltage - Forward (Vf) (Typ)	23 V	6 - 46 V

XHP50A Series

LED MOD XLAMP WH STARBOARD 5000K

Part	Type	Viewing Angle	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Lens Type	Current - Test	Color	Current - Max	Temperature - Test	Luminous Flux @ Current/Temperature	CCT (K)	CCT (K)	Size / Dimension [diameter]	Lumens/Watt @ Current - Test	Configuration	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]
New Energy XHP50A-00-0000-0D0BJ450E-SB01	LED Module	120 °	6 V, 12 V	70	Domed	1.4 A, 700 mA	Cool, White	1.5 A, 3 A	85 °C	1160 lm	5000 K	5-Step MacAdam Ellipse	19.89 mm	72 lm/W	Starboard
New Energy XHP50A-0L-04-0D0BH430E	LED Module		46 V	70	Domed		Warm, White		85 °C	3880 lm	3000 K			121 lm/W	Linear Light Strip	1.5 A	6.7 in	1.3 in
New Energy XHP50A-0S-01-0D0BJ440E	LED Module		11.5 V	70	Domed		Neutral, White		85 °C	1120 lm	4000 K			139 lm/W	Square	1.5 A	36.83 mm	36.83 mm
New Energy XHP50A-0S-04-0D0BJ40E2	LED Module		46 V	70	Domed		Cool, White		85 °C		5700 K			139 lm/W	Square	1.5 A	73.15 mm	73.15 mm
New Energy XHP50A-0S-01-0D0BJ40E2	LED Module		11.5 V	70	Domed		Cool, White		85 °C	1120 lm	5700 K			139 lm/W	Square	1.5 A	36.83 mm	36.83 mm
New Energy XHP50A-0L-03-0D0HJ20E2	LED Module			80	Domed				85 °C						Linear Light Strip
New Energy XHP50A-0L-02-0D0HH227G	LED Module		23 V	80	Domed		Warm, White		85 °C	1800 lm	2700 K			112 lm/W	Linear Light Strip	1.5 A	93.98 mm	1.3 in
New Energy XHP50A-0L-04-0D0HH227G	LED Module		46 V	80	Domed		Warm, White		85 °C	3600 lm	2700 K			112 lm/W	Linear Light Strip	1.5 A	6.7 in	1.3 in
New Energy XHP50A-0L-02-0D0BJ450E	LED Module		23 V	70	Domed		Cool, White		85 °C	2240 lm	5000 K	5-Step MacAdam Ellipse		139 lm/W	Linear Light Strip	1.5 A	93.98 mm	1.3 in
New Energy XHP50A-0S-04-0D0HJ250G	LED Module			80	Domed				85 °C						Square
