AGX-30
ActiveEaton - Electronics Division

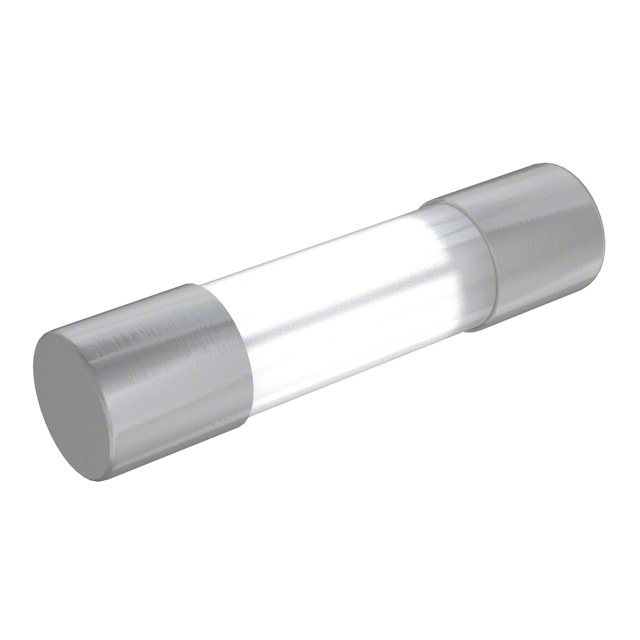

FUSE GLASS 30A 125VAC 8AG
AGX-30
ActiveEaton - Electronics Division
FUSE GLASS 30A 125VAC 8AG
Description
General part information
AGX-30
30 A 125 V AC DC Fuse Cartridge, Glass Requires Holder 8AG, 1/4" x 1"
Technical Specifications
Parameters and characteristics for this part
| Specification | AGX-30 |
|---|---|
| Approval Agency | CSA, UL, cURus |
| Breaking Capacity | 100 A |
| Current Rating | 30 A |
| DC Cold Resistance | 0.002 Ohms |
| Fuse Type | Cartridge, Glass |
| Mounting Type | Requires Holder |
| Package Diameter | 0.25 in |
| Package Length | 25.4 mm, 0.25 in |
| Package Name | 8AG |
| Package Width | 25.4 mm |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.25 in |
| Size / Dimension Length | 1 in |
| Voltage Rating - AC | 125 V |
