8136-475G2
ObsoleteTE Connectivity AMP Connectors

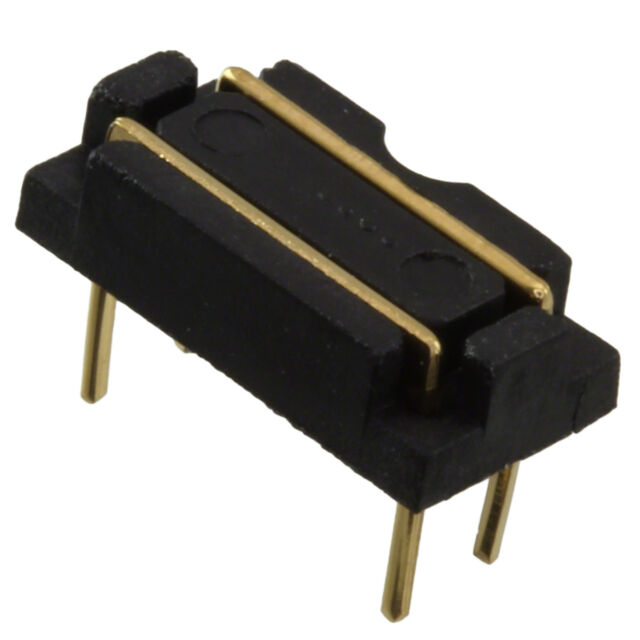

CONN PLUG MALE PIN 4POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8136-475G2
ObsoleteTE Connectivity AMP Connectors
CONN PLUG MALE PIN 4POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 8136-475G2 | 8136 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Finish | Gold | Gold, Tin |
| Features | Programmable | Programmable |
| Gender | - | Male Pins |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 4 | 2 - 14 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Row Spacing | 0.3 in | 0.3 in |
| Row Spacing | 7.62 mm | 7.62 mm |
| Termination | Solder | Solder |
8136 Series
CONN PLUG MALE PIN 6POS GOLD
| Part | Color | Contact Finish | Row Spacing | Row Spacing | Pitch [x] | Pitch [x] | Number of Positions | Connector Type | Features | Termination | Mounting Type | Number of Rows | Number of Positions | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 8136-652P1 | Black | Gold | 0.3 in | 7.62 mm | 2.54 mm | 0.1 in | 6 | Plug | Programmable | Solder | Through Hole | 2 | ||
TE Connectivity AMP Connectors 8136-477P1 | Black | Gold | 0.3 in | 7.62 mm | 2 | Plug | Programmable | Solder | Through Hole | 2 | ||||
TE Connectivity AMP Connectors 8136-475G7 | Black | Gold | 0.3 in | 7.62 mm | 2.54 mm | 0.1 in | 14 | Plug | Programmable | Solder | Through Hole | 2 | ||
TE Connectivity AMP Connectors 8136-651P2 | Black | Gold | 0.3 in | 7.62 mm | 2 | Plug | Programmable | Solder | Through Hole | 2 | ||||
TE Connectivity AMP Connectors 8136-651P3 | Black | Gold | 0.3 in | 7.62 mm | 2 | Plug | Programmable | Solder | Through Hole | 2 | ||||
TE Connectivity AMP Connectors 8136-652P4 | Black | Gold | 0.3 in | 7.62 mm | 2.54 mm | 0.1 in | Plug | Programmable | Solder | Through Hole | 2 | 16 | ||
TE Connectivity AMP Connectors 8136-650P3 | Black | Tin | Male Pins | |||||||||||
TE Connectivity AMP Connectors 8136-475G2 | Black | Gold | 0.3 in | 7.62 mm | 2.54 mm | 0.1 in | 4 | Plug | Programmable | Solder | Through Hole | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
8136 Series
4 Position Plug Connector Gold
