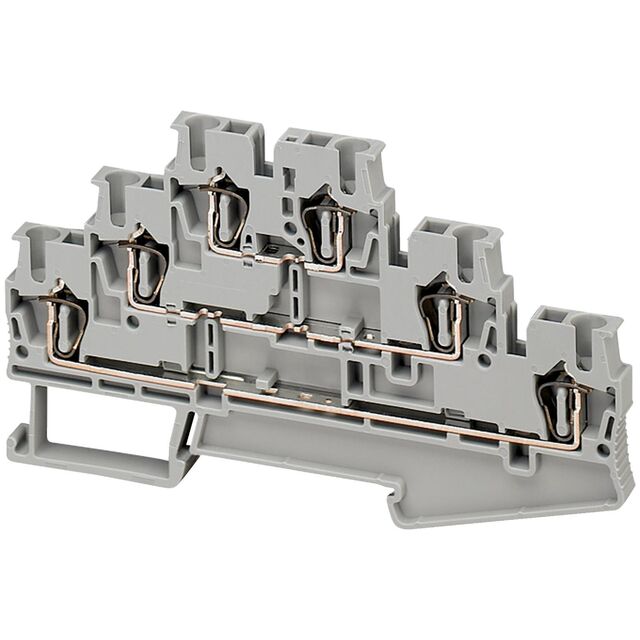

NSYTRR26TBL
ObsoleteSCHNEIDER ELECTRIC
SPRING TERMINAL 3LEVEL, 6PTS, 2,
NSYTRR26TBL
ObsoleteSCHNEIDER ELECTRIC
SPRING TERMINAL 3LEVEL, 6PTS, 2,
Description
General part information
NSYTRR26TBL
Terminal Block Connector 6 Position Feed Through Blue
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYTRR26TBL |
|---|---|
| Color | Blue |
| Current - IEC | 20 A |
| Current - UL | 20 A |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 3 |
| Number of Positions | 6 |
| Stripping Length | 10 mm |
| Terminal Width | 5.2 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Voltage - IEC | 500 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
