100025095
ActiveTelegartner Inc
MMCX PLG 90 SD/CR G7
100025095
ActiveTelegartner Inc
MMCX PLG 90 SD/CR G7
Description
General part information
100025095

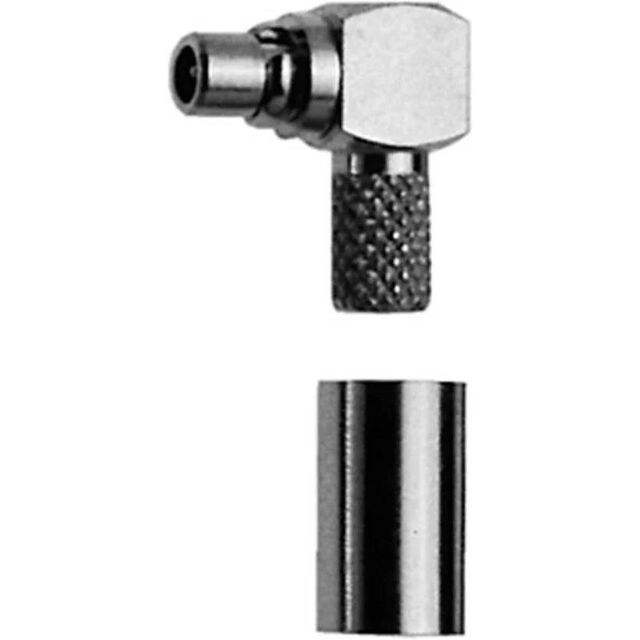

MMCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 100025095 |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Cable Group | RG-174, 316, 188 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | MMCX |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 170 V |
