B82144B2224J000

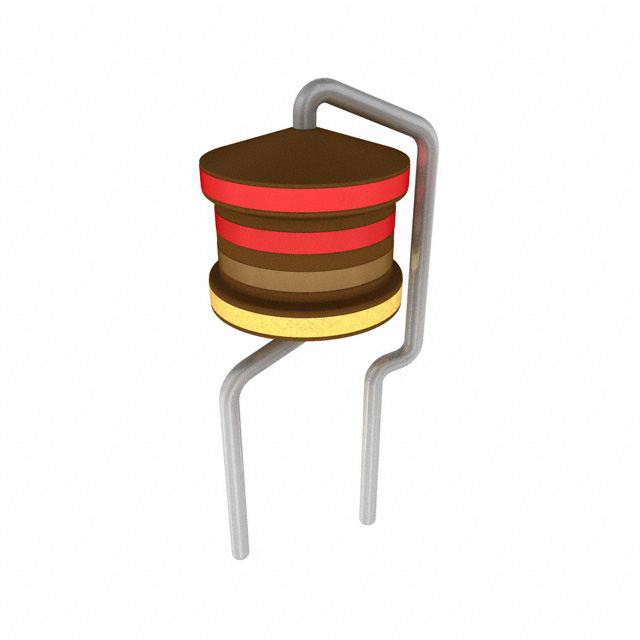

220 µH Unshielded Drum Core, Wirewound Inductor 900 mA 1.01Ohm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | B82144B2224J000 |
|---|---|
| Current - Saturation (Isat) | 650 mA |
| Current Rating | 900 mA |
| DC Resistance (DCR) (Max) | 1.01 Ohm |
| Frequency - Self Resonant | 3.6 MHz |
| Height - Seated (Max) | 0.551 in |
| Inductance | 220 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Vertical Cylinder, Radial |
| Q | 40 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.256 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
