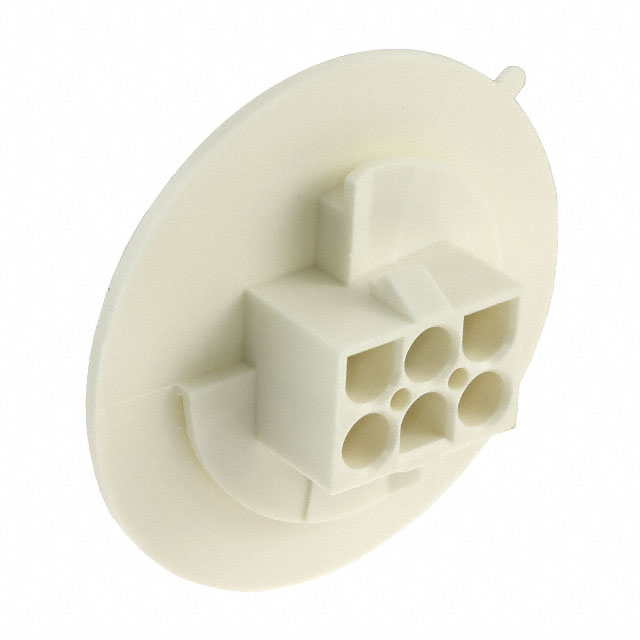

Specification	1586887-1

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male or Female, Male, Female
Fastening Type	Latch Lock
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C

Universal MATE-N-LOK Series

...
