1742350-1
ActiveTE Connectivity AMP Connectors

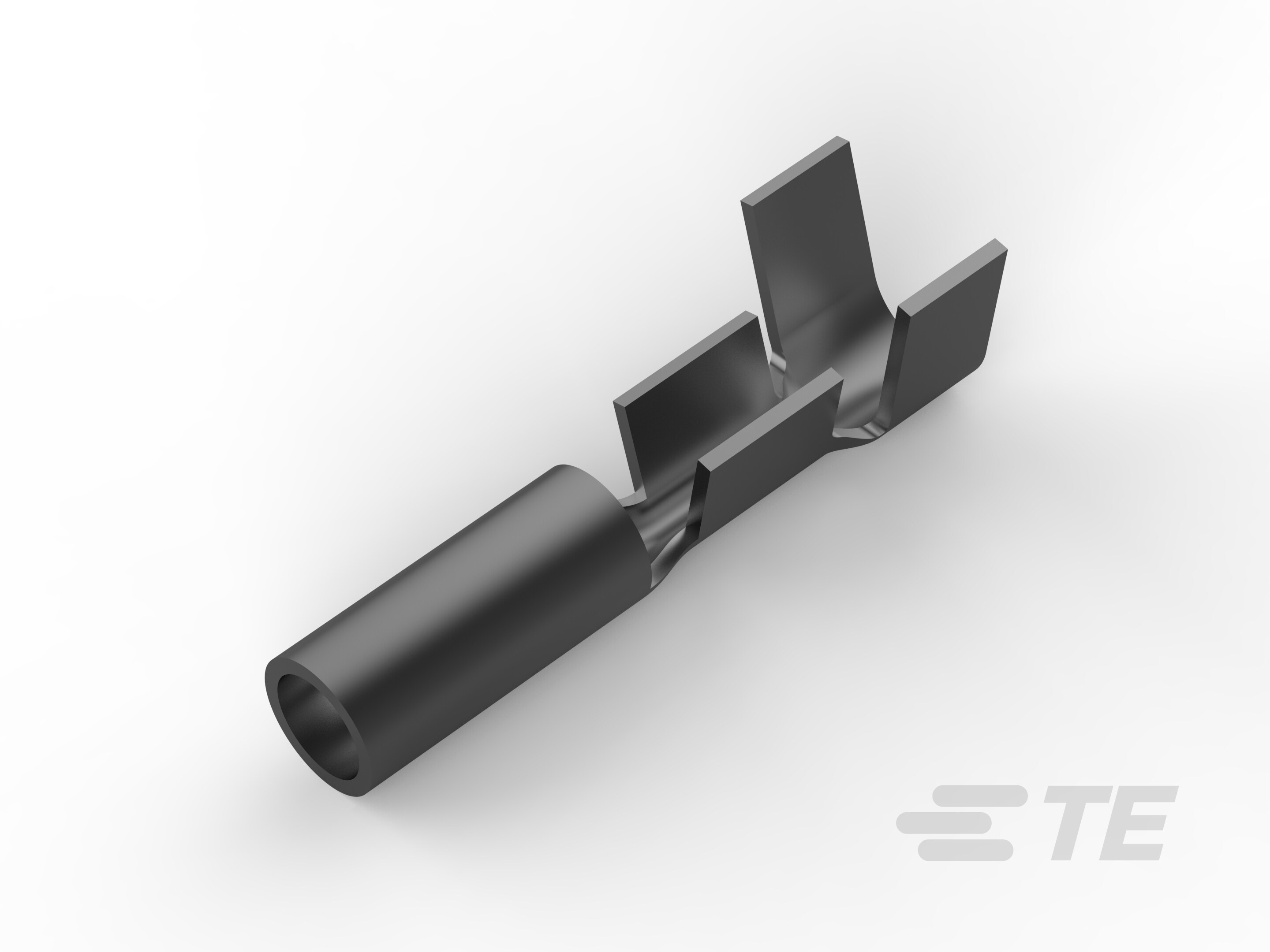

CONN SOCKET 18-22AWG TIN CRIMP
1742350-1
ActiveTE Connectivity AMP Connectors
CONN SOCKET 18-22AWG TIN CRIMP
Description
General part information
1742350-1
Receptacle, 2.08 mm [.082 in] Pin Diameter, 22 – 18 AWG, .3 – .8 mm² Wire, 642 – 1624 CMA, Open Barrel, Tin Plating, 14.25 mm [.561 in] Length, Reel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1742350-1 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 80 µin |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
