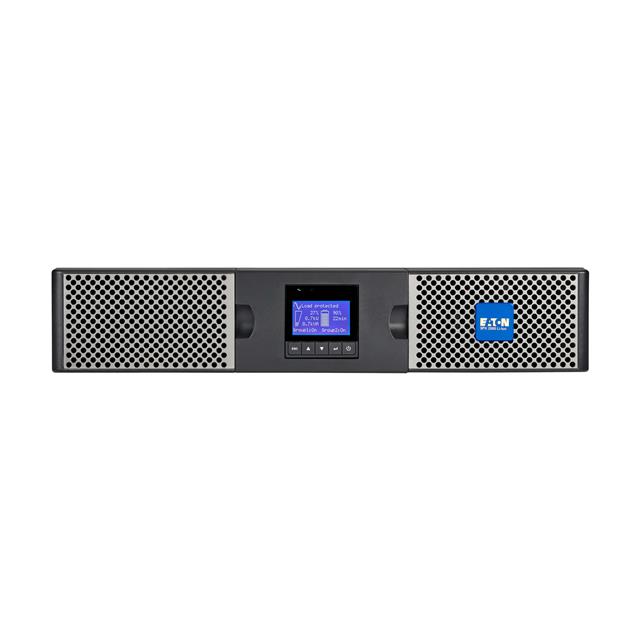

Specification	9PX2000RT-L

AC Outlets (Count)	7 count
Applications	General Purpose, Industrial Control
Approval Agency	cUL
Backup Time - Max Load	3 minutes
Cord Length	8 ft
Form	Rackmount, Tower
Height	3.4 in
Input Connector	NEMA 5-20P
Media Lines Protected	RS-232
Output Connector	NEMA L5-20R, NEMA 5-20R, NEMA 5-20R (6), NEMA L5-20R (1)
Output Connector Quantity (NEMA 5-20R)	6
Output Connector Quantity (NEMA L5-20R)	1
Power - Rated (VA)	2 kVA
Power - Rated (W)	1.8 kW
Size / Dimension Length	23.8 in
Size / Dimension Width	17.3 in
Type	Online (Double Conversion)
Voltage - Input	120 VAC, 100 V, 110 VAC
Voltage - Output	120V, 125V, 110V, 100V
Voltage - Output (1)	100 VAC
Voltage - Output (2)	110 VAC
Voltage - Output (3)	120 V
Voltage - Output (4)	125 V
