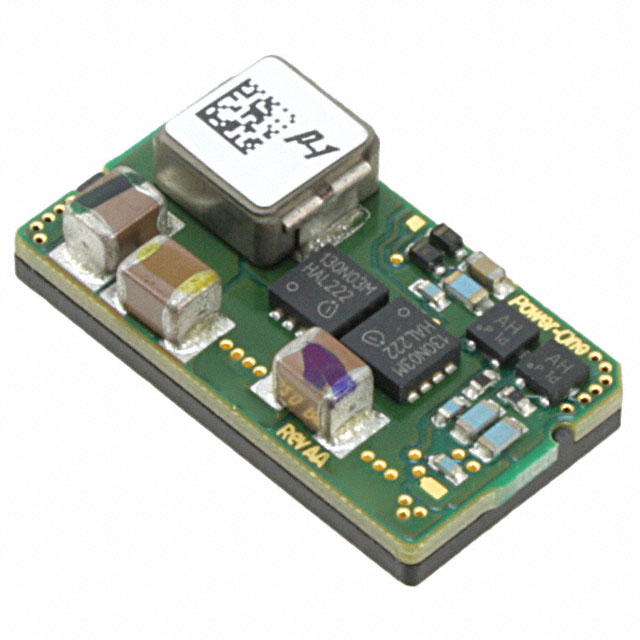

DP7007G-R100

Active

Bel Power Solutions

DC DC CONVERTER 0.7-5.5V

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 0.7-5.5V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DP7007G-R100	DP7007 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	-	CSA, UL
Current - Output (Max)	7 A	7 A
Features	-	Remote Sense, Adjustable Output
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	36-SMD Module, Module
Power (Watts)	-	39 W
Size / Dimension [x]	0.87 in	0.87 in
Size / Dimension [x]	22.2 mm	22.2 mm
Size / Dimension [y]	0.49 in	0.49 in
Size / Dimension [y]	12.5 mm	12.5 mm
Size / Dimension [z]	6.5 mm	6.5 mm
Size / Dimension [z]	0.26 "	0.26 "
Standard Number	-	60950-1
Type	Non-Isolated PoL Module, Digital	Non-Isolated PoL Module, Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V	14 V
Voltage - Input (Min) [Min]	8 V	8 V
Voltage - Output 1 [Max]	5.5 V	5.5 V
Voltage - Output 1 [Min]	0.7 V	0.7 V

DC/DC CONVERTER

Part	Features	Standard Number	Type	Number of Outputs	Approval Agency	Power (Watts)	Voltage - Input (Max) [Max]	Mounting Type	Current - Output (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Package / Case	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
Bel Power Solutions DP7007G-R200	Adjustable Output, Remote Sense	60950-1	Non-Isolated PoL Module	1	CSA, UL	39 W	14 V	Surface Mount	7 A	85 °C	-40 °C	ITE (Commercial)	5.5 V	0.7 V	36-SMD Module	8 V	6.5 mm	0.26 "	0.49 in	0.87 in	12.5 mm	22.2 mm
Bel Power Solutions DP7007G			Non-Isolated PoL Module, Digital	1			14 V	Surface Mount	7 A	85 °C	-40 °C	ITE (Commercial)	5.5 V	0.7 V	Module	8 V	6.5 mm	0.26 "	0.49 in	0.87 in	12.5 mm	22.2 mm
Bel Power Solutions DP7007G-R100			Non-Isolated PoL Module, Digital	1			14 V	Surface Mount	7 A	85 °C	-40 °C	ITE (Commercial)	5.5 V	0.7 V	Module	8 V	6.5 mm	0.26 "	0.49 in	0.87 in	12.5 mm	22.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.7 ~ 5.5V 7A 8V - 14V Input
