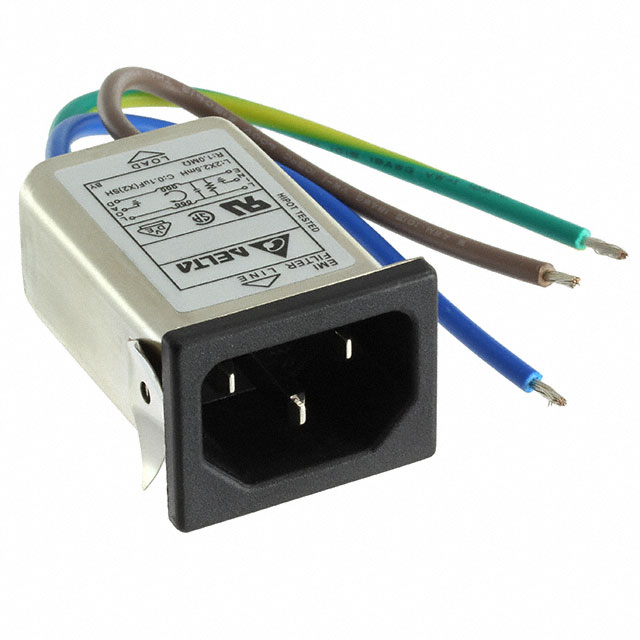

03GENW3EM-R(H)

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PNL WIRE

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PNL WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	03GENW3EM-R(H)	03GENW Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	3 A	3 A
Current Rating - Filter	3 A	3 A
Features	Mounting Clip, Bleed Resistor	Mounting Clip, Bleed Resistor
Filter Type	Filtered (EMI, RFI) - Commercial, Medical	Filtered (EMI, RFI) - Commercial, Medical
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	29.5 mm	29.5 mm
Panel Cutout Dimensions [y]	21.5 mm	21.5 mm
Termination	Wire Leads	Wire Leads
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

PWR ENT RCPT IEC320-C14 PNL WIRE

Part	Filter Type	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Accomodates a Fuse	Current Rating - Appliance Inlet	Connector Style	Current Rating - Filter	Mounting Type	Approval Agency	Termination	Connector Type
Delta Electronics 03GENW3EM-R(H)	Filtered (EMI, RFI) - Commercial, Medical	115 VAC	250 VAC	Bleed Resistor, Mounting Clip	29.5 mm	21.5 mm		3 A	IEC 320-C14	3 A	Panel Mount, Snap-In	CSA, UL, VDE	Wire Leads	Male Blades, Receptacle
Delta Electronics 03GENW3QM-R(H)	Filtered (EMI, RFI) - Commercial, Medical	115 VAC	250 VAC	Bleed Resistor, Mounting Clip	29.5 mm	21.5 mm		3 A	IEC 320-C14	3 A	Panel Mount, Snap-In	CSA, UL, VDE	Wire Leads	Male Blades, Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
