VG95328C14-19PNJ
ActiveMcGill Microwave Systems
VG95328 19C 19#20 PIN BOX RECP
VG95328C14-19PNJ
ActiveMcGill Microwave Systems
VG95328 19C 19#20 PIN BOX RECP
Description
General part information
VG95328C14-19PNJ

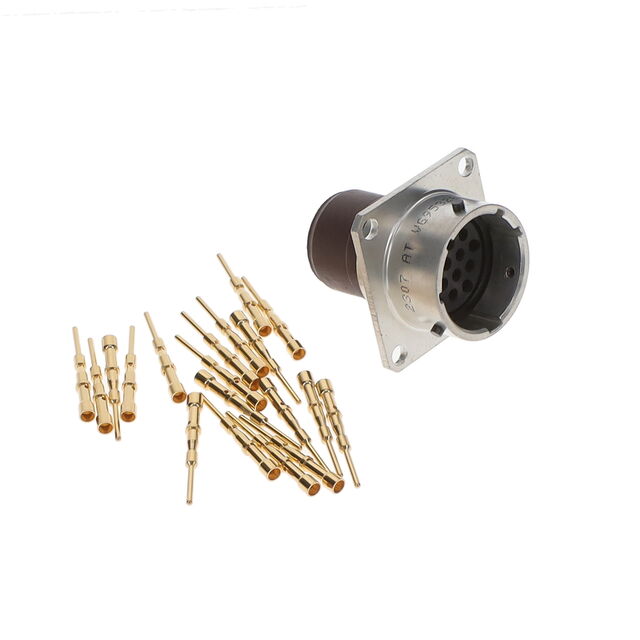

19 Position Circular Connector Receptacle, Male Pins Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | VG95328C14-19PNJ |
|---|---|
| Applications | Military |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Reverse Bayonet Lock |
| Number of Positions | 19 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Shell Finish | Zinc-Tin |
| Shell Size - Insert (Maximum) | 19 |
| Shell Size - Insert (Minimum) | 14 S |
| Shielding | Shielded |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
