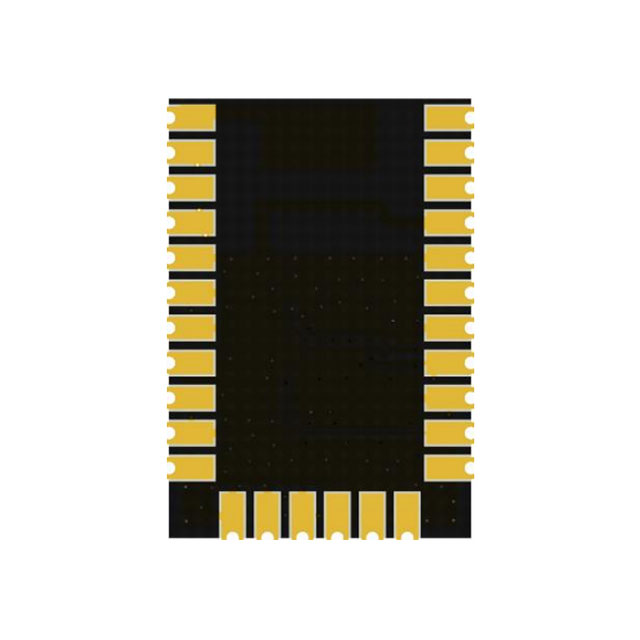

M20050-1

Active

Antenova

RF RCVR GNSS/GPS 1.575GHZ MODULE

Search across all available documentation for this part.

Active

Antenova

RF RCVR GNSS/GPS 1.575GHZ MODULE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RADIONOVA® RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS 1.575GHz -165dBm On-Board, Trace Module

Technical documentation and resources

Specification	M20050-1	M20050 Series

Antenna Connector	On-Board, Trace	On-Board, Trace
Applications	General Purpose	General Purpose
Current - Receiving	29 mA	29 mA
Data Interface	UART	UART
For Use With/Related Products	-	MT3333
Frequency	1.575 GHz	1.575 GHz
Frequency	-	1.609 GHz
Frequency	-	1.559 GHz
Modulation or Protocol	GNSS, Galileo, BeiDou, GLONASS, GPS	GNSS, Galileo, BeiDou, GLONASS, GPS
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Sensitivity	-165 dBm	-165 dBm
Supplied Contents	-	Board(s)
Supplier Device Package	Module	Module
Type	-	GNSS (Beidou, Galileo, GLONASS, GPS)
Voltage - Supply [Max]	4.3 V	4.3 V
Voltage - Supply [Min]	2.8 V	2.8 V

Part	Frequency [Max]	Frequency [Min]	For Use With/Related Products	Type	Supplied Contents	Modulation or Protocol	Frequency	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Antenna Connector	Package / Case	Current - Receiving	Data Interface	Sensitivity
Antenova M20050-EVB-1	1.609 GHz	1.559 GHz	MT3333	GNSS (Beidou, Galileo, GLONASS, GPS)	Board(s)
Antenova M20050-1						BeiDou, Galileo, GLONASS, GNSS, GPS	1.575 GHz	Module	85 °C	-40 °C	Surface Mount	General Purpose	2.8 V	4.3 V	On-Board, Trace	Module	29 mA	UART	-165 dBm
