2085945-4
ActiveTE Connectivity AMP Connectors
CONNECTOR QSFP+ CAGE STRAIGHT COPPER ALLOY BLACK GOLD BOX/TRAY
2085945-4
ActiveTE Connectivity AMP Connectors
CONNECTOR QSFP+ CAGE STRAIGHT COPPER ALLOY BLACK GOLD BOX/TRAY
Description
General part information
2085945-4

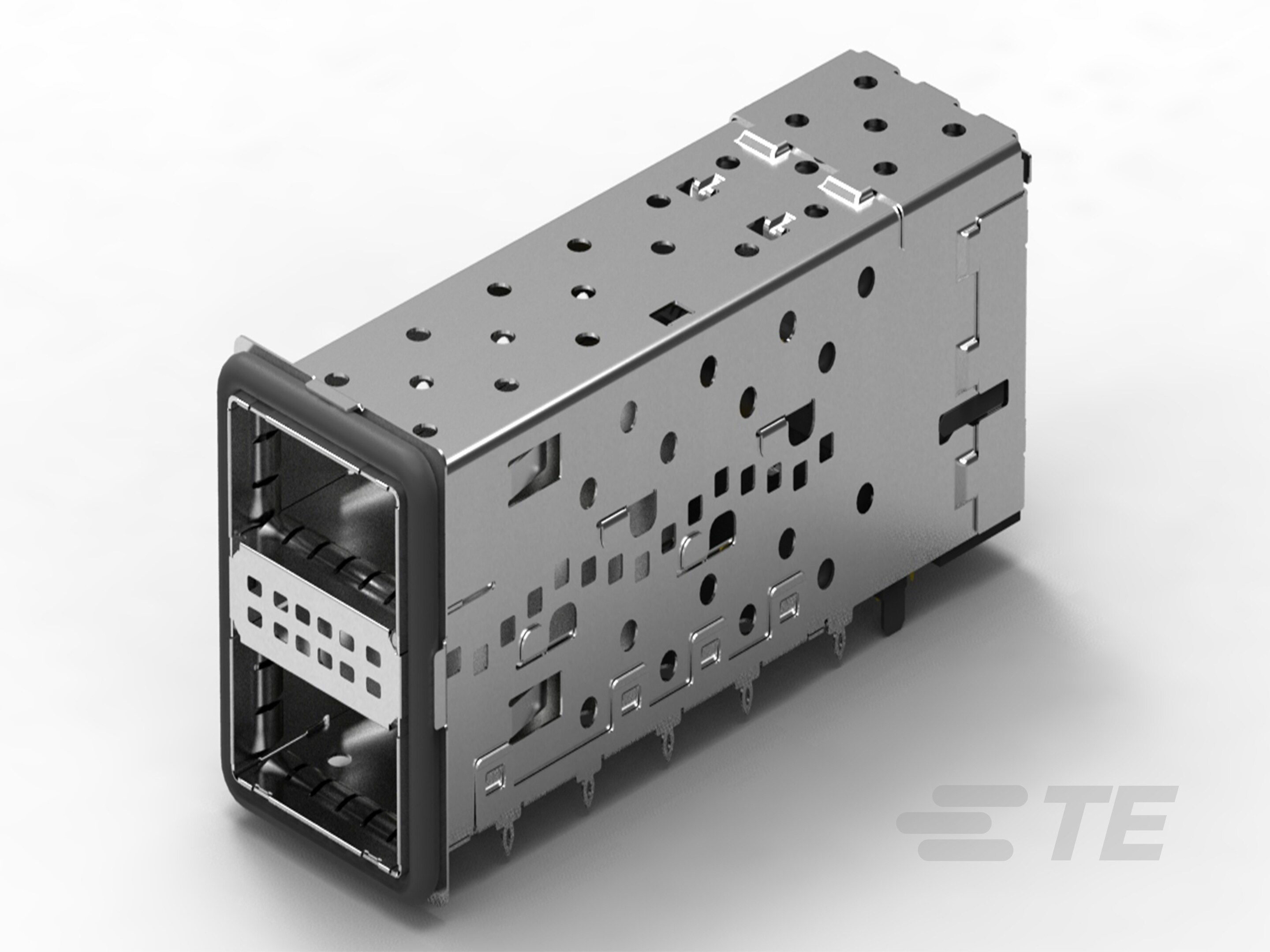

QSFP+, Cage Assembly with Integrated Connector, .8mm [.032in] Centerline, Sealable, Signal, Operating Temperature Range -55 – 105 °C [-67 – 221 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | 2085945-4 |
|---|---|
| Connector Pin Configuration (Columns) | 2 pins |
| Connector Pin Configuration (Rows) | 1 pins |
| Connector Style | Ganged, Receptacle with Cage |
| Connector Type | QSFP+ |
| Contact Finish | Gold |
| Features | EMI Shielded |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions (Columns) | 38 |
| Number of Positions (Rows) | 2 |
| Number of Positions (Total) | 76 |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
