5680701823F

Active

DIALIGHT

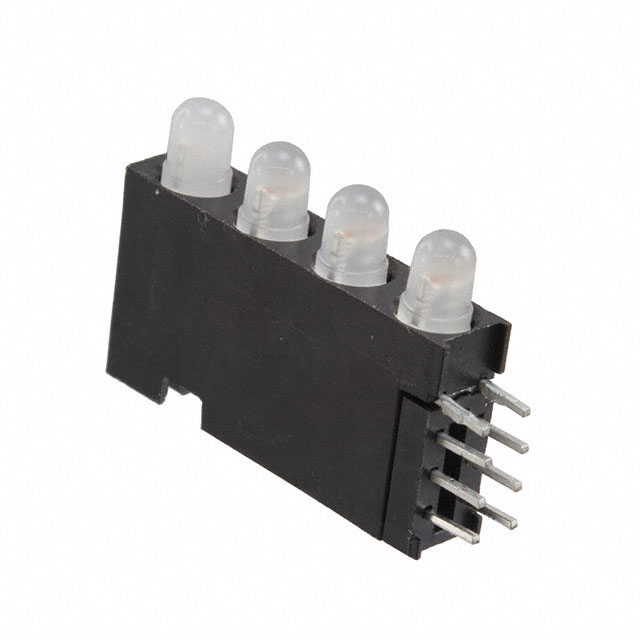

LED CBI 3MM QUAD GRN/RED/YL RA

Find alt

Alpha

5680701823F

Active

DIALIGHT

LED CBI 3MM QUAD GRN/RED/YL RA

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

5680701 Series

LED Circuit Board Indicator LED Circuit Board Indicator 4 High Green, Red (x 1), Green, Yellow (x 3) Diffused 2.1V Green, 2V Red, 2.1V Yellow 30mA Green, 30mA Red, 20mA Yellow Through Hole, Right Angle

Technical Specifications

Parameters and characteristics for this part

Specification	5680701823F

Color	Yellow, Green, Red
Color Count	1 count, 1 count, 3 count
Configuration	High
Configuration Count	4
Current (Green)	30 mA
Current (Red)	30 mA
Current (Yellow)	20 mA
Current Colors	Green, Yellow, Red
Lens Type	Diffused
Millicandela Rating (Green)	6.3 mcd
Millicandela Rating (Red)	4.7 mcd
Millicandela Rating (Yellow)	4.3 mcd
Millicandela Rating Colors	Yellow, Red, Green
Mounting Type	Through Hole, Right Angle
Viewing Angle	80 °, 60 °
Voltage Rating - Color	Red, Yellow, Green
Voltage Rating (Green)	2.1 V
Voltage Rating (Red)	2 V
Voltage Rating (Yellow)	2.1 V
Wavelength - Peak (1)	565 nm
Wavelength - Peak (2)	635 nm
Wavelength - Peak (3)	585 nm

5680701 Series

Part	Color	Color Count	Lens Type	Voltage Rating (Green)	Voltage Rating - Color	Voltage Rating (Red)	Wavelength - Peak (1)	Wavelength - Peak (2)	Millicandela Rating (Red)	Millicandela Rating Colors	Millicandela Rating (Green)	Lens Style	Lens Size	Lens Size (Code)	Configuration Count	Configuration	Mounting Type	Current (Red)	Current Colors	Current (Green)	Viewing Angle	Voltage Rating (Yellow)	Current (Yellow)	Wavelength - Peak (3)	Millicandela Rating (Yellow)	Current
DIALIGHT 5680701110F	Blank Green Red	1 count 1 count 3 count	Diffused	2.1 V	Green Red	2 V	565 nm	635 nm	4.7 mcd	Green Red	10 mcd	Domed Top Round	3 mm	T-1	4	High	Right Angle Through Hole	30 mA	Green Red	30 mA	60 °
DIALIGHT 5680701041F	Blank Green Red Yellow	1 count 1 count 1 count 2 count	Diffused	2.1 V	Green Red Yellow	2 V	565 nm	635 nm	4.7 mcd	Green Red Yellow	6.3 mcd				4	High	Right Angle Through Hole	30 mA	Green Red Yellow	30 mA	60 ° 80 °	2.1 V	20 mA	585 nm	4.3 mcd
DIALIGHT 5680701444F	Green Red Yellow	1 count 1 count 3 count	Diffused	2.1 V	Green Red Yellow	2 V	565 nm	635 nm	4.7 mcd	Green Red Yellow	6.3 mcd	Domed Top Round	3 mm	T-1	4	High	Right Angle Through Hole	30 mA	Green Red Yellow	30 mA	60 ° 80 °	2.1 V	20 mA	585 nm	4.3 mcd
DIALIGHT 5680701101F	Blank Green Red	1 count 1 count 3 count	Diffused	2.1 V	Green Red	2 V	565 nm	635 nm	4.7 mcd	Green Red	10 mcd	Domed Top Round	3 mm	T-1	4	High	Right Angle Through Hole	30 mA	Green Red	30 mA	60 °
DIALIGHT 5680701111F	Green Red	1 count 4 count	Clear	2.1 V	Green Red	2 V	565 nm	635 nm	4.7 mcd	Green Red	10 mcd	Domed Top Round	3 mm	T-1	4	High	Right Angle Through Hole				60 °					10 mA
DIALIGHT 5680701000F	Blank Green Red	1 count 1 count 3 count	Diffused	2.1 V	Green Red	2 V	565 nm	635 nm	4.7 mcd	Green Red	10 mcd	Domed Top Round	3 mm	T-1	4	High	Right Angle Through Hole	30 mA	Green Red	30 mA	60 °
DIALIGHT 5680701414F	Green Red Yellow	1 count 2 count 2 count	Diffused	2.1 V	Green Red Yellow	2 V	565 nm	635 nm	4.7 mcd	Green Red Yellow	6.3 mcd	Domed Top Round	3 mm	T-1	4	High	Right Angle Through Hole	30 mA	Green Red Yellow	30 mA	60 ° 80 °	2.1 V	20 mA	585 nm	4.3 mcd
DIALIGHT 5680701846F	Green Yellow	1 count 4 count	Diffused	2.1 V	Green Red	2 V	565 nm	630 nm	5.6 mcd	Green Red	8.7 mcd	Domed Top Round	3 mm	T-1	4	High	Right Angle Through Hole	20 mA	Green Red	20 mA	200 °
DIALIGHT 5680701100F	Blank Green Red	1 count 2 count 2 count	Diffused	2.1 V	Green Red	2 V	565 nm	635 nm	4.7 mcd	Green Red	10 mcd	Domed Top Round	3 mm	T-1	4	High	Right Angle Through Hole	30 mA	Green Red	30 mA	60 °
DIALIGHT 5680701144F	Green Red Yellow	1 count 2 count 2 count	Diffused	2.1 V	Green Red Yellow	2 V	565 nm	635 nm	4.7 mcd	Green Red Yellow	6.3 mcd	Domed Top Round	3 mm	T-1	4	High	Right Angle Through Hole	30 mA	Green Red Yellow	30 mA	60 ° 80 °	2.1 V	20 mA	585 nm	4.3 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

5680701823F | Datasheet
