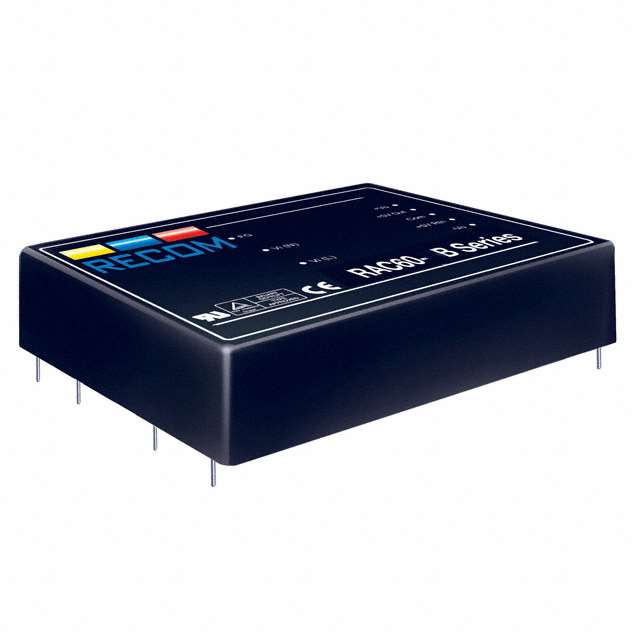

RAC60-48SB
ObsoleteRecom Power
AC/DC CONVERTER 48V 60W
RAC60-48SB
ObsoleteRecom Power
AC/DC CONVERTER 48V 60W
Description
General part information
RAC60-48SB
Enclosed AC DC Converters 1 Output 48V 1.25A 85 ~ 265 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | RAC60-48SB |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, CE |
| Current - Output (Max) | 1.25 A |
| Efficiency | 86 % |
| Features | SCP |
| Line Regulation | 1 % |
| Load Regulation (Percent) | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 60 W |
| Size / Dimension Height | 1.2 in |
| Size / Dimension Length | 4.29 in |
| Size / Dimension Width | 2.3 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output 1 | 48 V |
| Weight | 0.684 lb |
