454952-E
ActiveTE Connectivity AMP Connectors

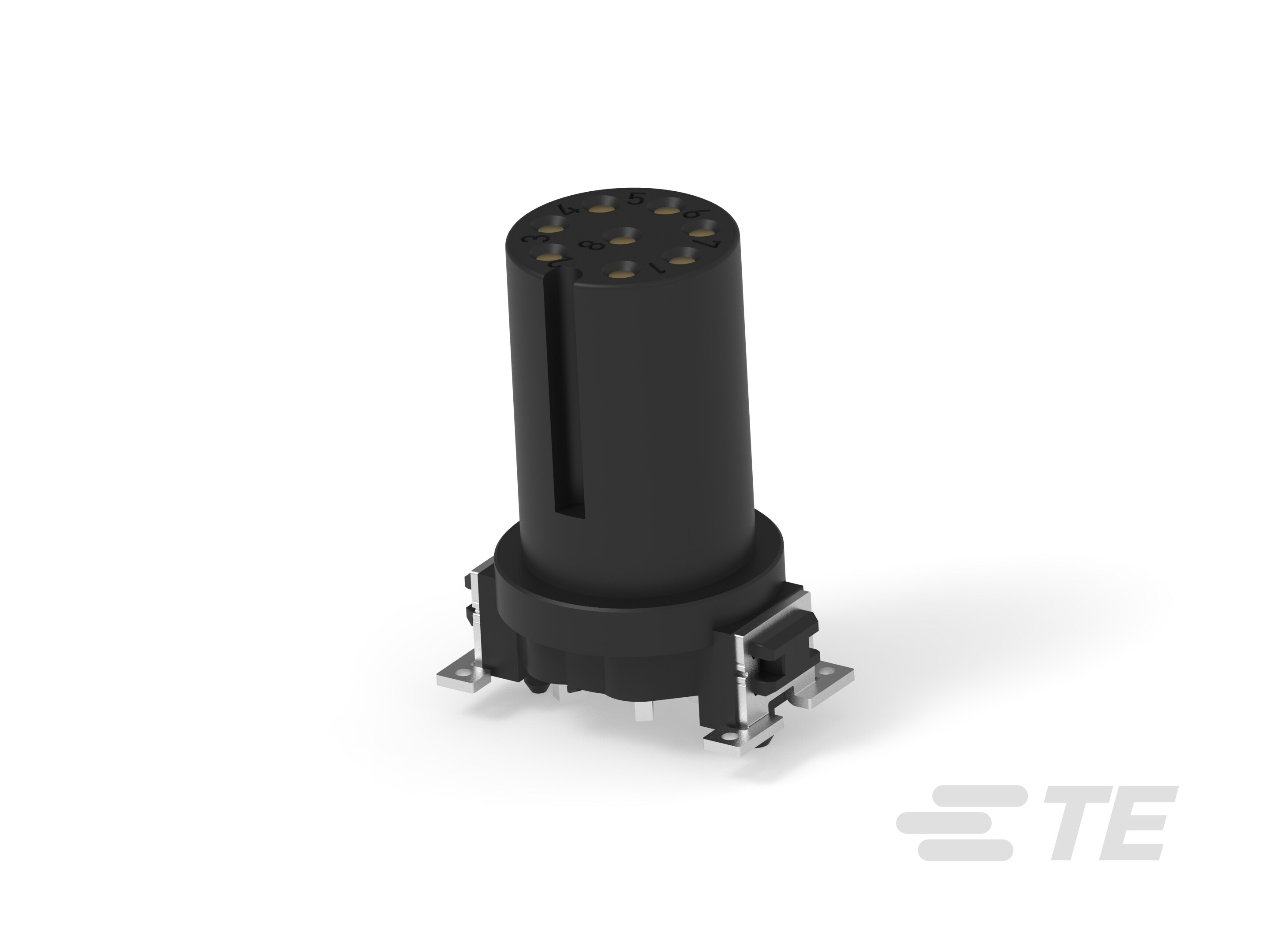

CIRCULAR METRIC CONNECTORS 8-PIN,A-CODING,SMT
454952-E
ActiveTE Connectivity AMP Connectors
CIRCULAR METRIC CONNECTORS 8-PIN,A-CODING,SMT
Description
General part information
- Series
8 Position Circular Connector, Cable-to-Board, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 454952-E |
|---|---|
| Color | Black |
| Connector Type | Female Sockets, Insert |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Features | Requires Shell, Board Guide, Insert Only |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | A |
| Shell Size - Insert | M12-8 |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
