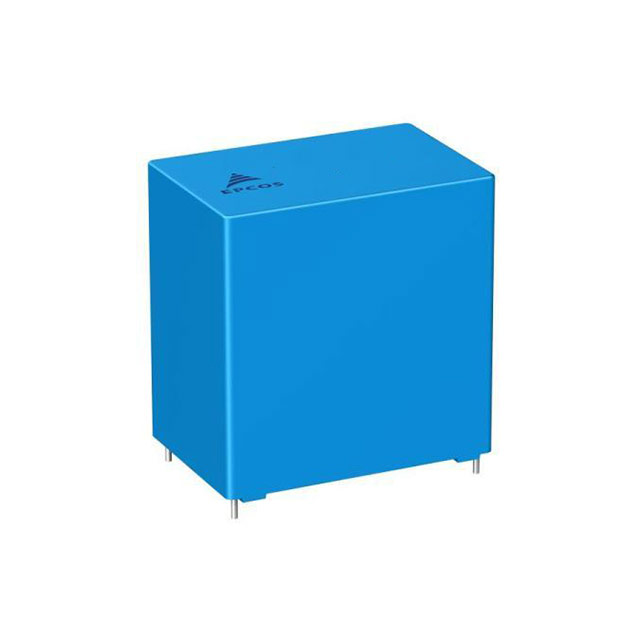

Specification	B32778Z4117K000

Applications	DC Filtering, DC Link
Capacitance	110 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	3.9 mOhm
Features	Long Life
Height - Seated (Max)	1.969 in
Lead Spacing	2.067 in
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package Leads	4 Leads
Package Name	Radial
Size / Dimension Length	2.264 in
Size / Dimension Width	1.378 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - DC	500 V
